K9 SERIES · DUAL-DISPLAY POS

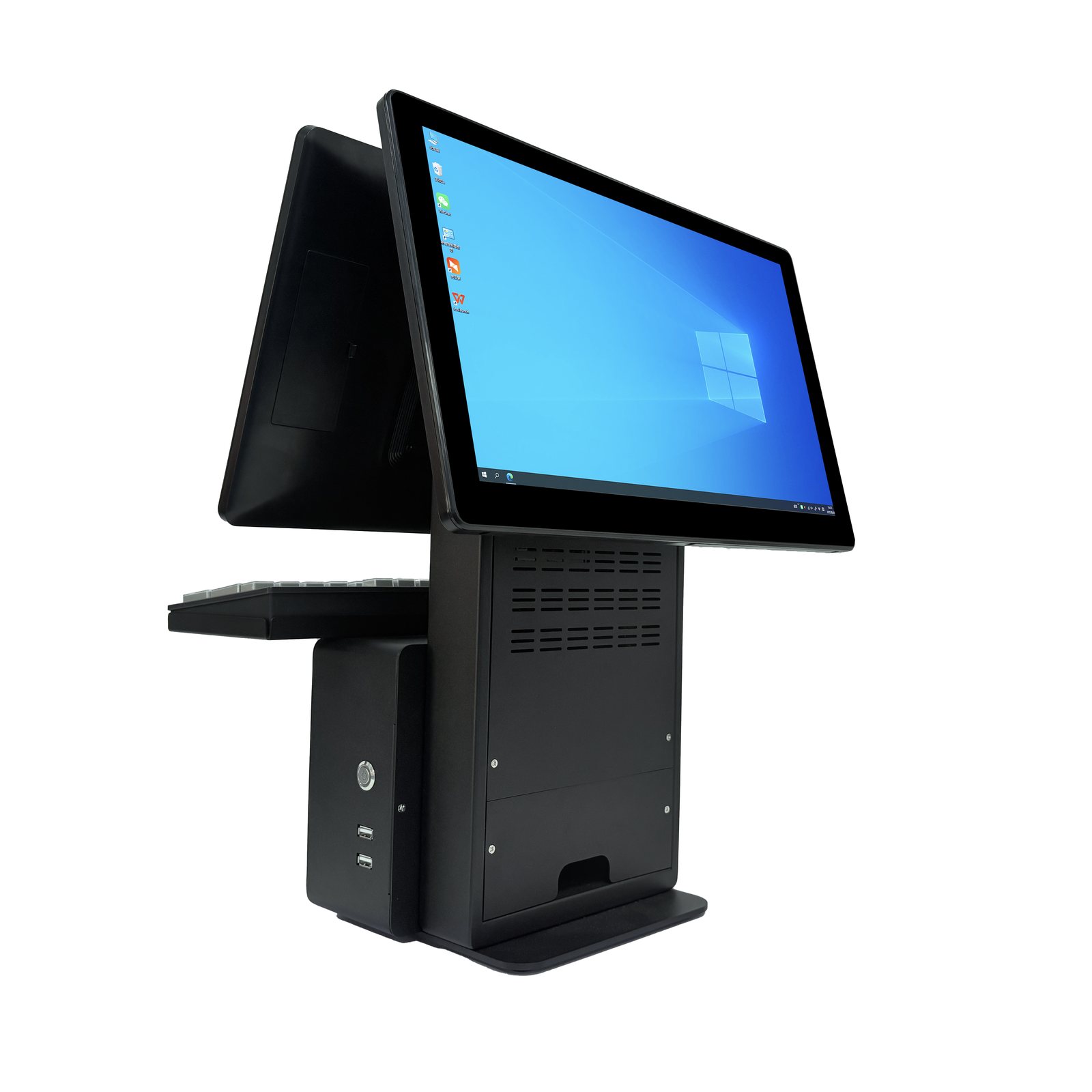

K9 Dual-Display Checkout Terminal.

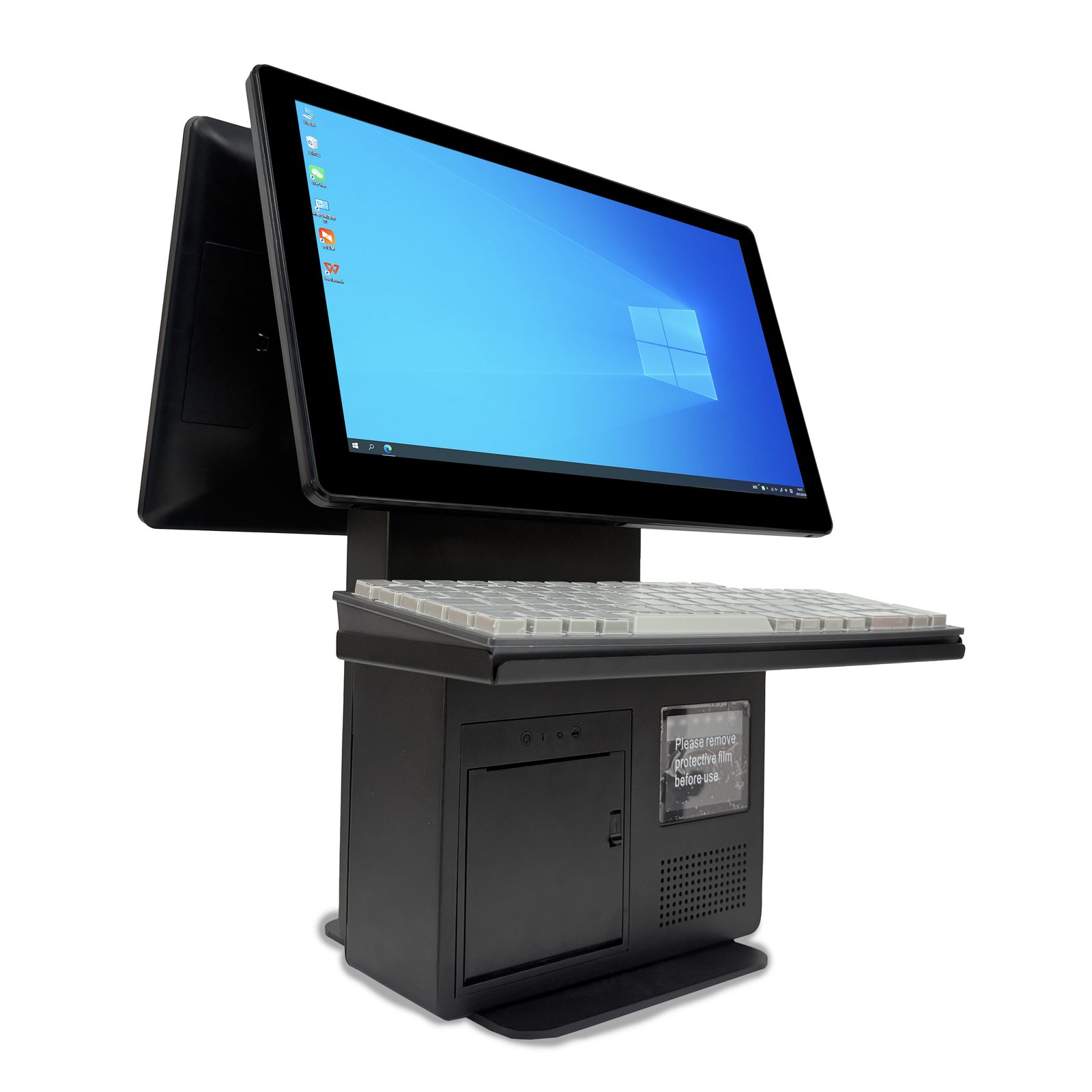

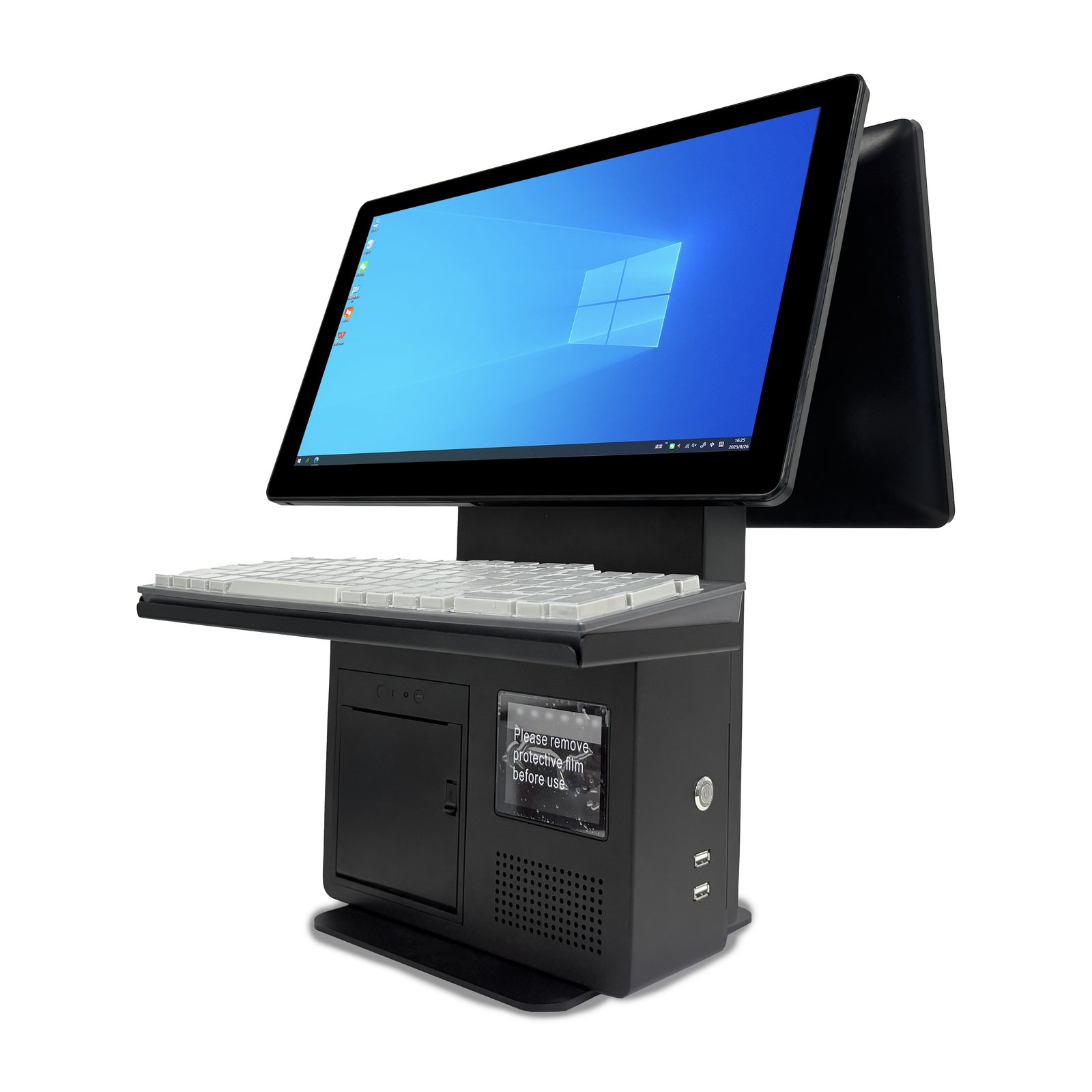

The illustrated K9 configuration combines front and rear 15.6-inch displays with a keyboard shelf and vertical enclosure. Refer to the dimension drawing below for the illustrated configuration.
COLOUR
Windows-wallpaper product images are shown throughout the K9 Gate Terminal gallery. Final hardware configuration is confirmed per project.
Vertical Enclosure

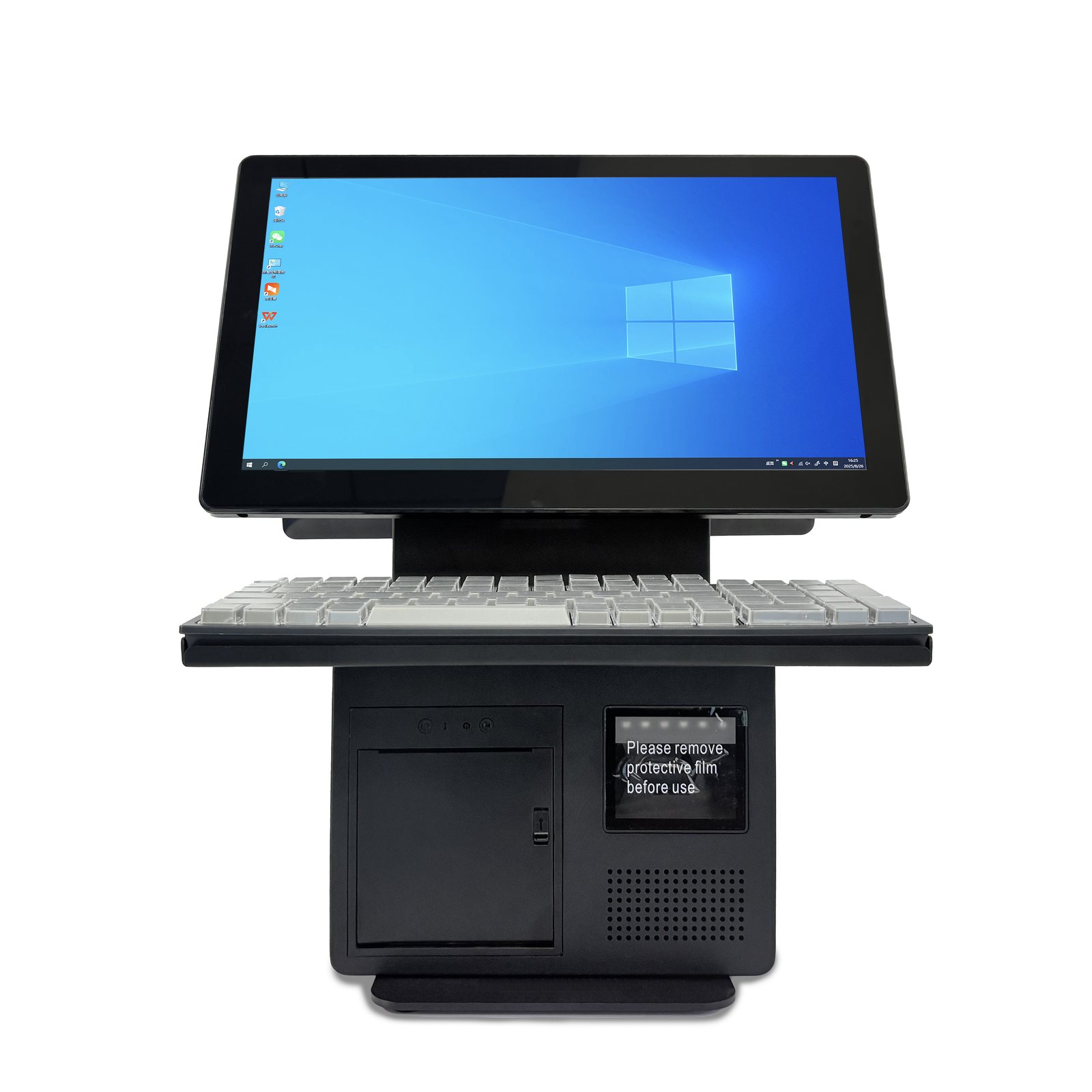

The illustrated terminal includes a keyboard shelf beneath the operator display.
15.6-inch Touch Display
Capacitive touch with 1366 × 768 resolution and 1920 × 1080 optional.
Two 15.6-inch Displays
The reference drawing shows 15.6-inch displays on both sides.
OEM / ODM
Branding and hardware configuration are discussed per project.
PRODUCT OVERVIEW
Dual-display layout with a keyboard shelf.

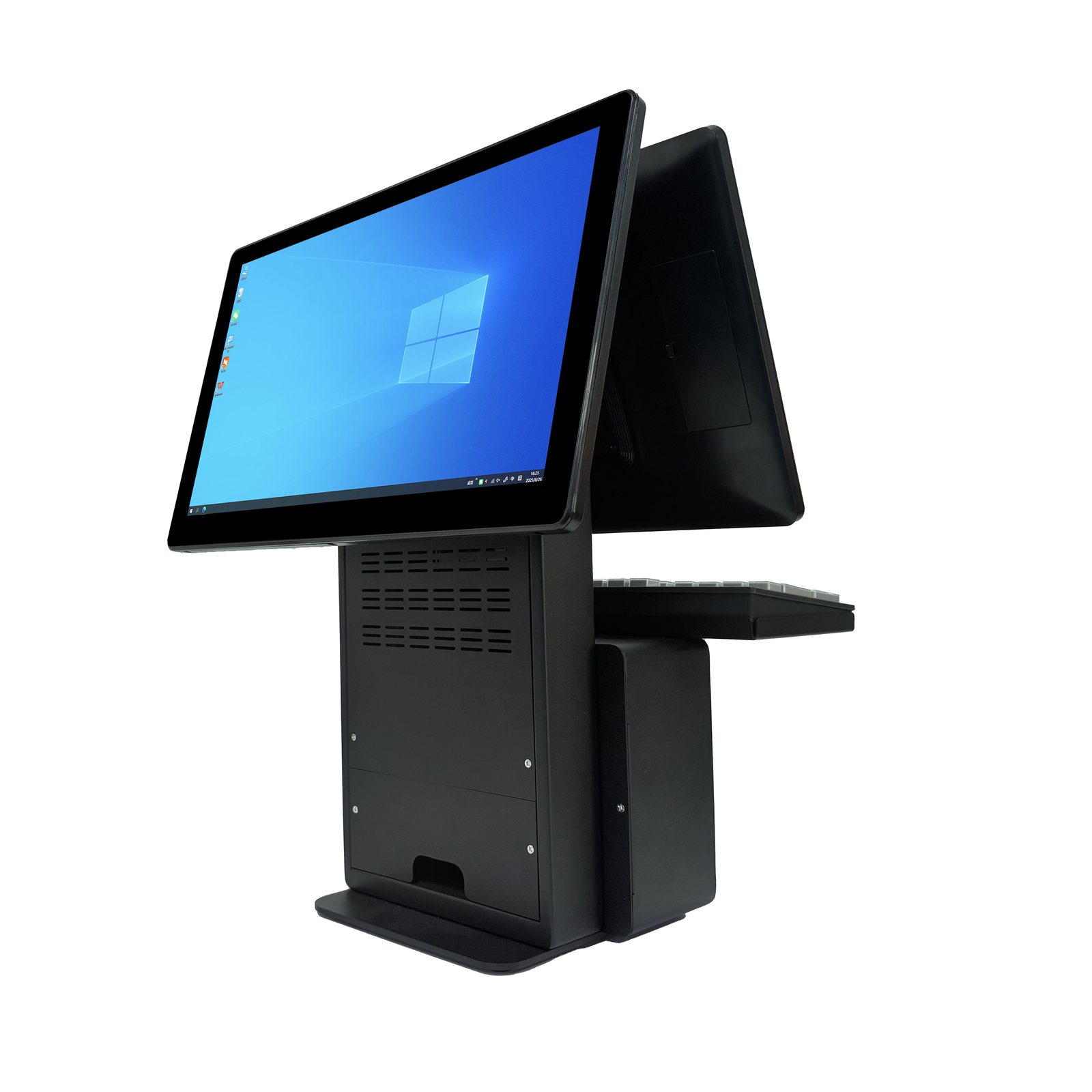

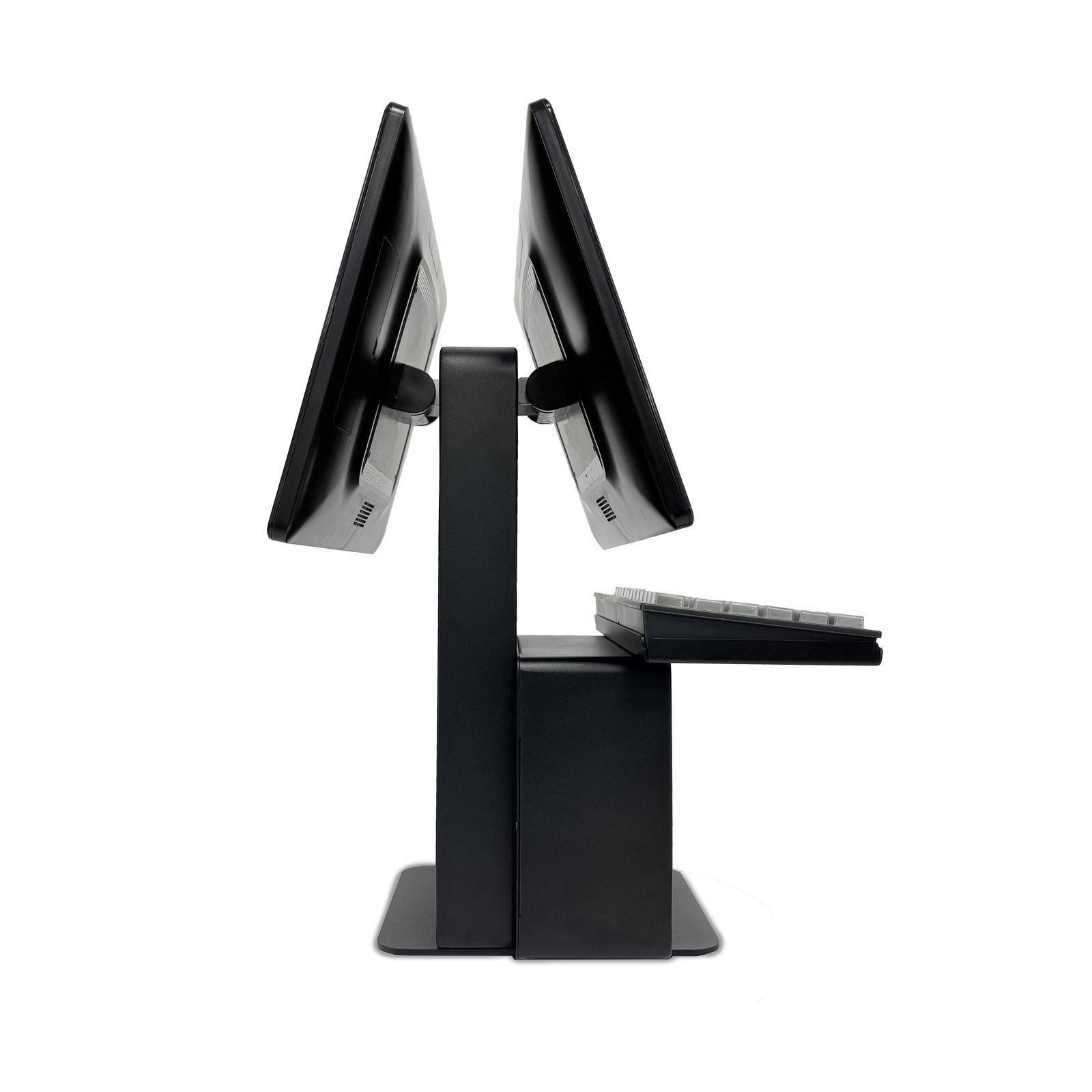

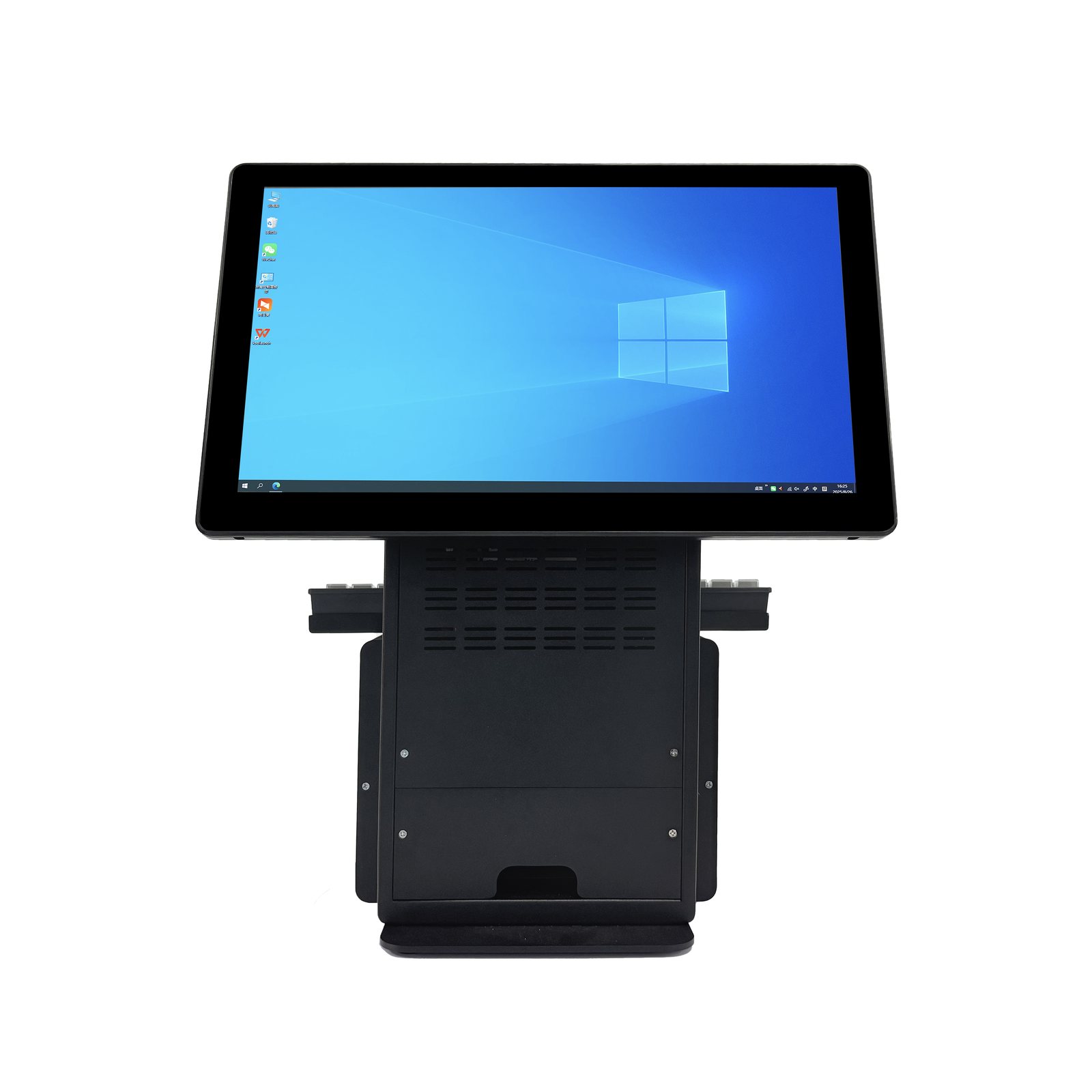

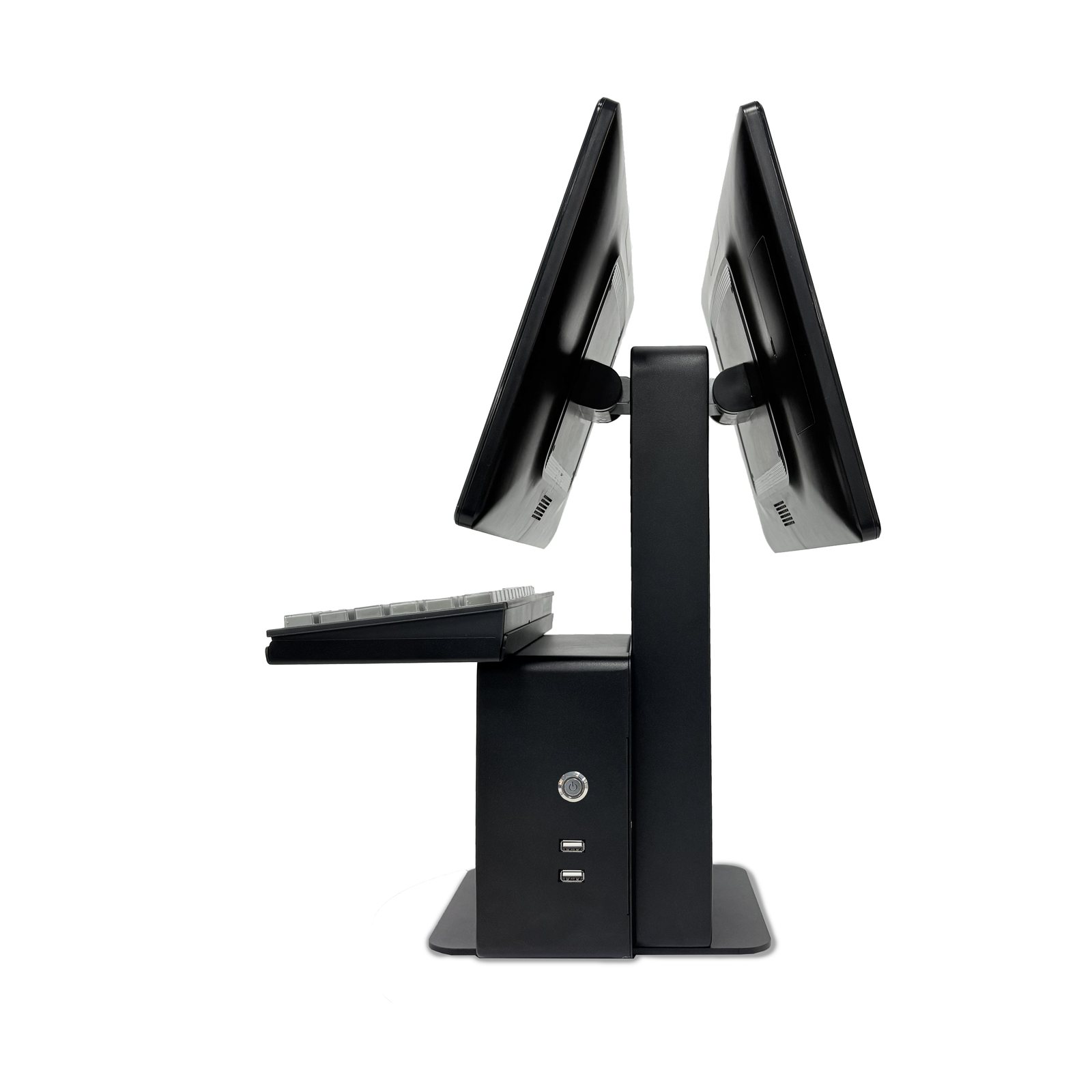

The K9 reference drawing shows front and rear 15.6-inch displays, a keyboard shelf and a vertical enclosure. The illustrated unit is 475 mm high, with each display housing measuring 390 mm wide and 235 mm high. These dimensions apply to the illustrated configuration.
Keyboard shelf and vertical enclosure
15.6-inch capacitive touch
Front and rear 15.6-inch displays
58 / 80 mm printer optional
TECHNICAL SPECIFICATIONS
Built around your K9 Gate Terminal configuration.
Core K9 Gate Terminal platform options are shown below. Final CPU, operating system, interfaces, display setup and peripherals are confirmed with the approved quotation.
CPU platform
Windows: N5095, N97, N100, J6412, i3, i5 or i7 · Android: RK3566, RK3568 or RK3588
Operating system
Windows 7 / 10 / 11 or Android OS
Memory
1 × SO-DIMM slot; DDR3L / DDR4; 4 GB / 8 GB / 16 GB optional
Storage
M.2 / mSATA; 128 GB / 256 GB / 512 GB optional
Primary display
15.6-inch LED capacitive-touch display; 1366 × 768, with 1920 × 1080 optional
Customer display
15.6-inch rear display in the illustrated configuration
Printer & scanner
58 / 80 mm printer optional; maximum print speed 180 mm/s; durability 100 km. Optional external 1D / 2D QR scanner.
Connectivity & options
1000 Mbps self-adaptive LAN; MSR, Wi-Fi and speaker optional
Packing & net weight
Carton: L442 × W155 × H455 mm; net weight: 6.5 kg
Images, specifications and configurations are for reference only. Actual products may vary without notice.
CONFIGURATION OPTIONS
Configure K9 Gate Terminal for your checkout flow.
Choose only the K9 Gate Terminal options required for the approved project configuration.

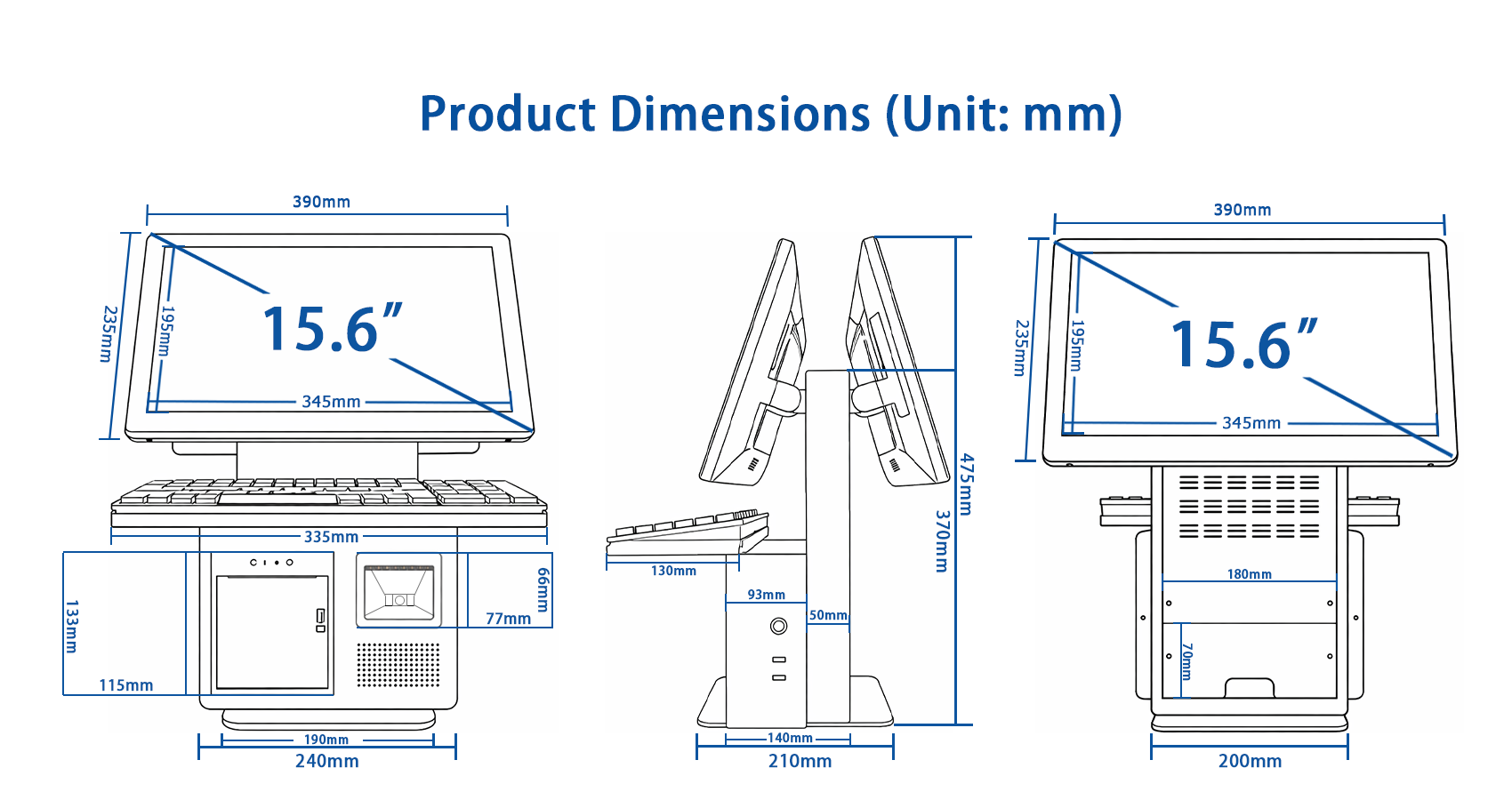

PRODUCT DIMENSIONS
K9 product dimensions.
Reference dimensions for the K9 supermarket checkout POS configuration.
15.6-inch dual-display reference dimensions
Send us your required K9 Gate Terminal configuration.
Include the target quantity, operating system, display setup and peripherals. Our team will review the required K9 configuration and options.
