H01 SERIES · FOLDABLE POS
Foldable POS for Modern Counters.
H01 Series is a foldable 15.6-inch POS platform with single-display layouts, a black 10.1-inch customer-display option, and 11.6-inch customer-display configurations in silver and gray-black.
COLOUR
Windows-wallpaper product images are shown throughout the H01 Series gallery. Final hardware configuration is confirmed per project.
Foldable Desktop Design
Adjust the operator display for different counter layouts.
15.6-inch Touch Display
Capacitive touch with 1366 × 768 resolution and 1920 × 1080 optional.

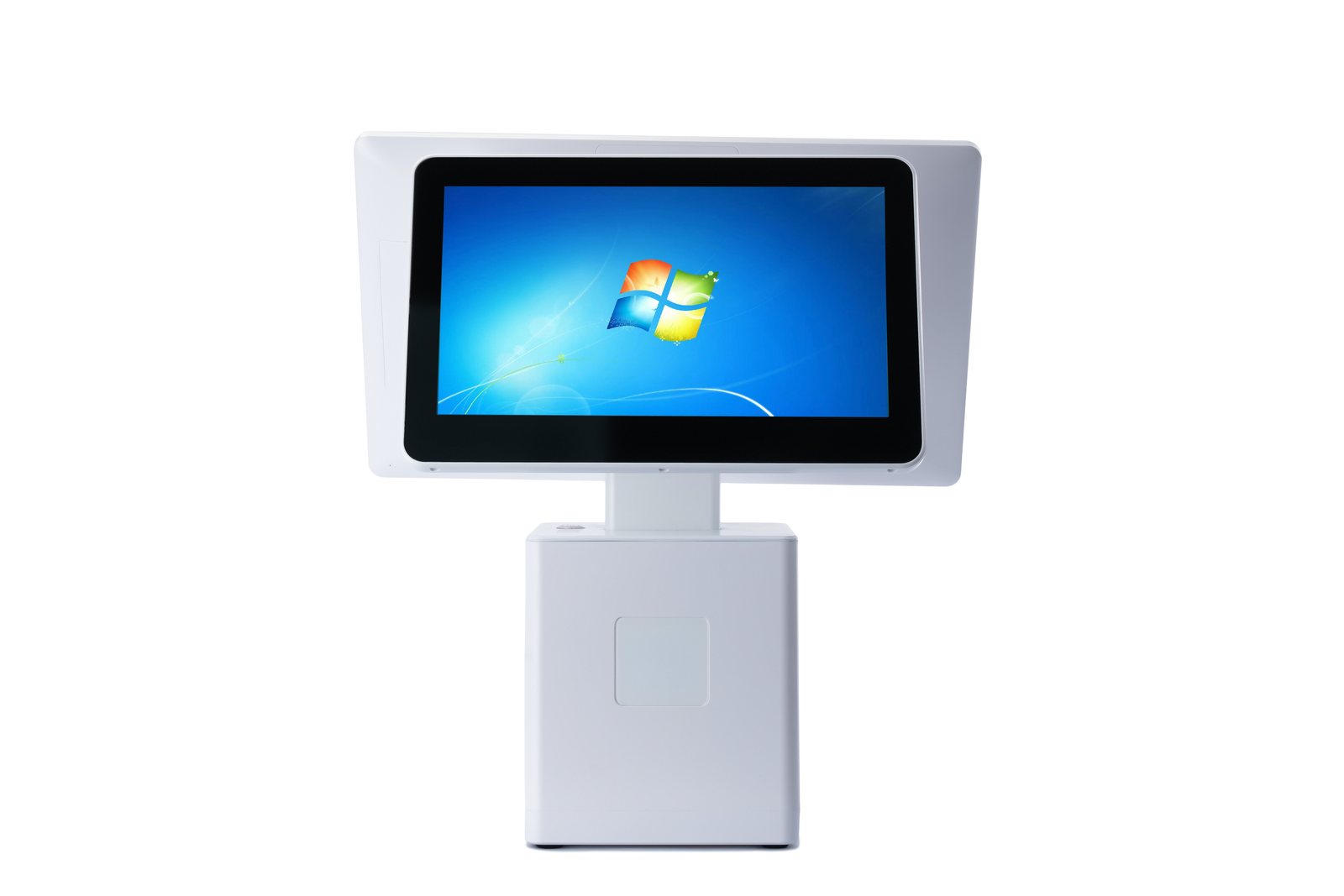

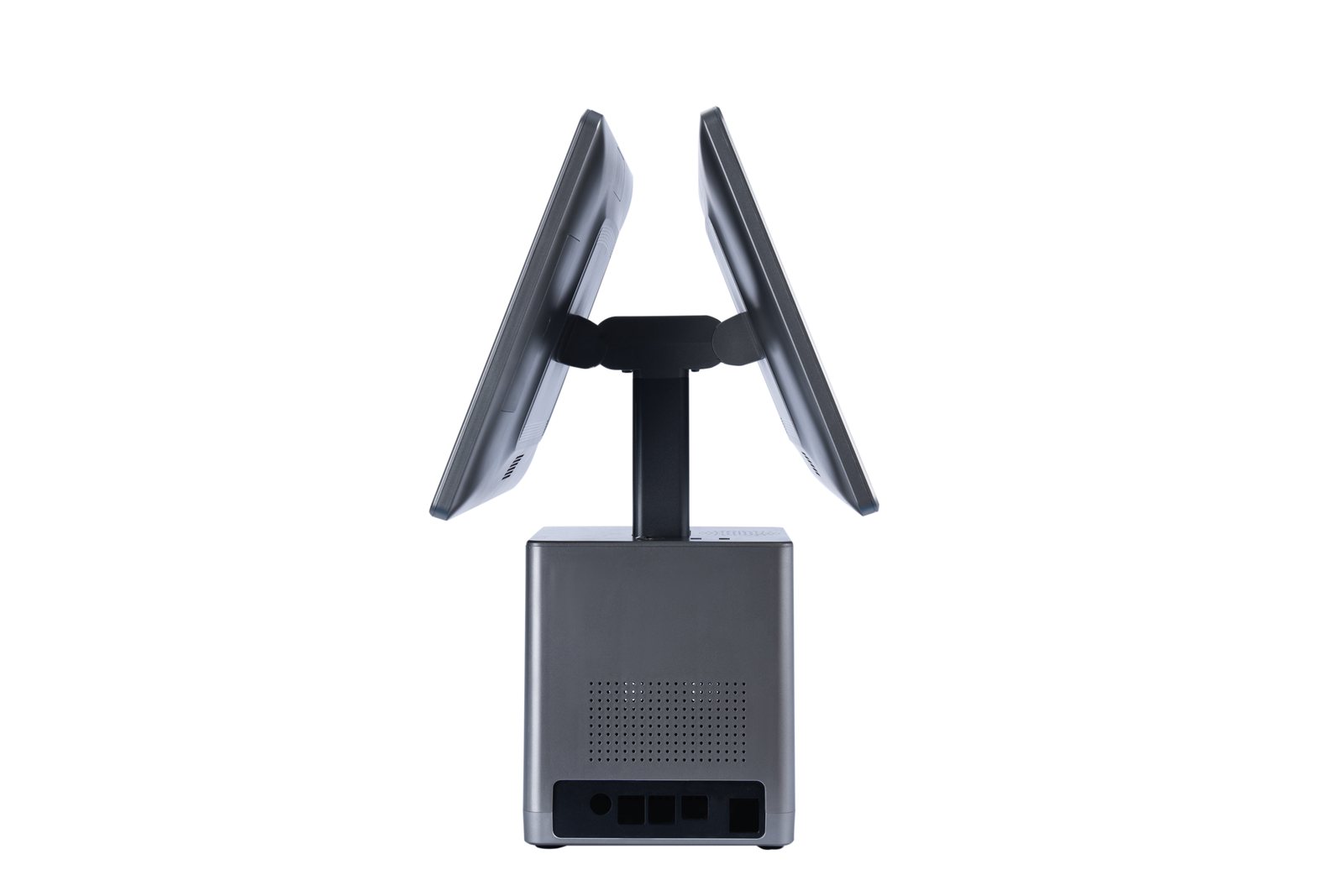

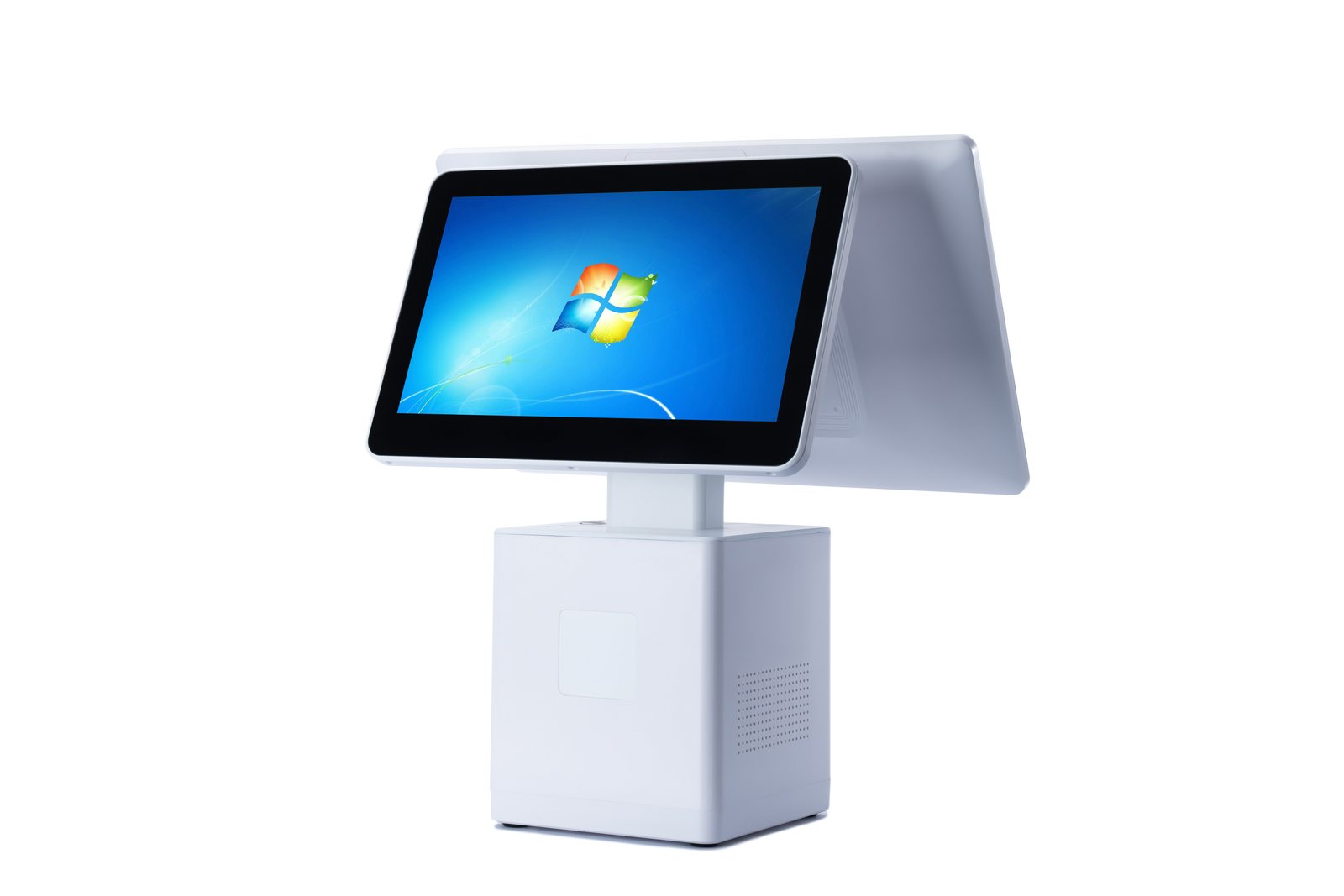

Single or Dual Display
Choose a single-display build or an 11.6-inch customer display.
OEM / ODM
Branding and hardware configuration are discussed per project.
PRODUCT OVERVIEW
Foldable form, practical checkout flexibility.

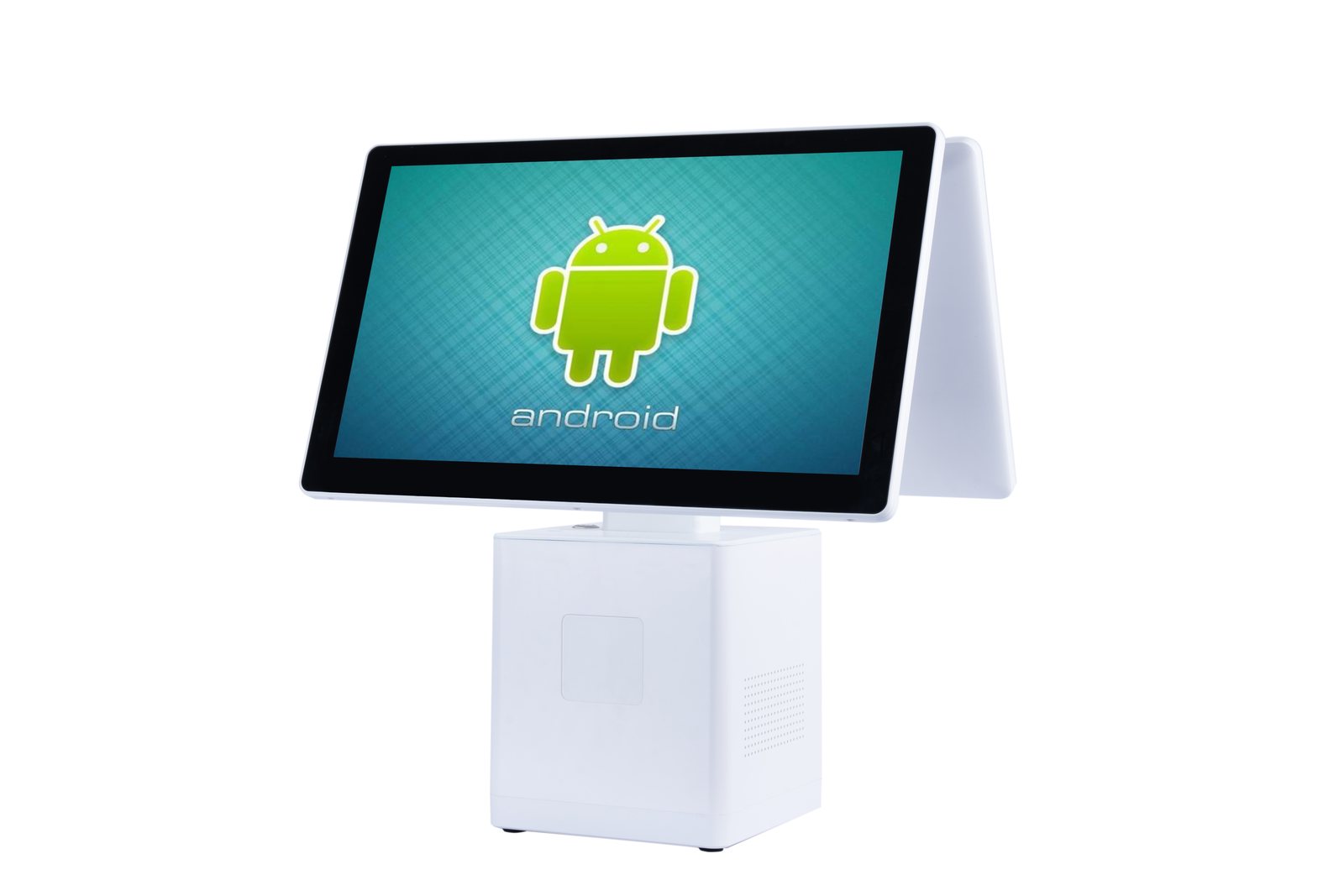

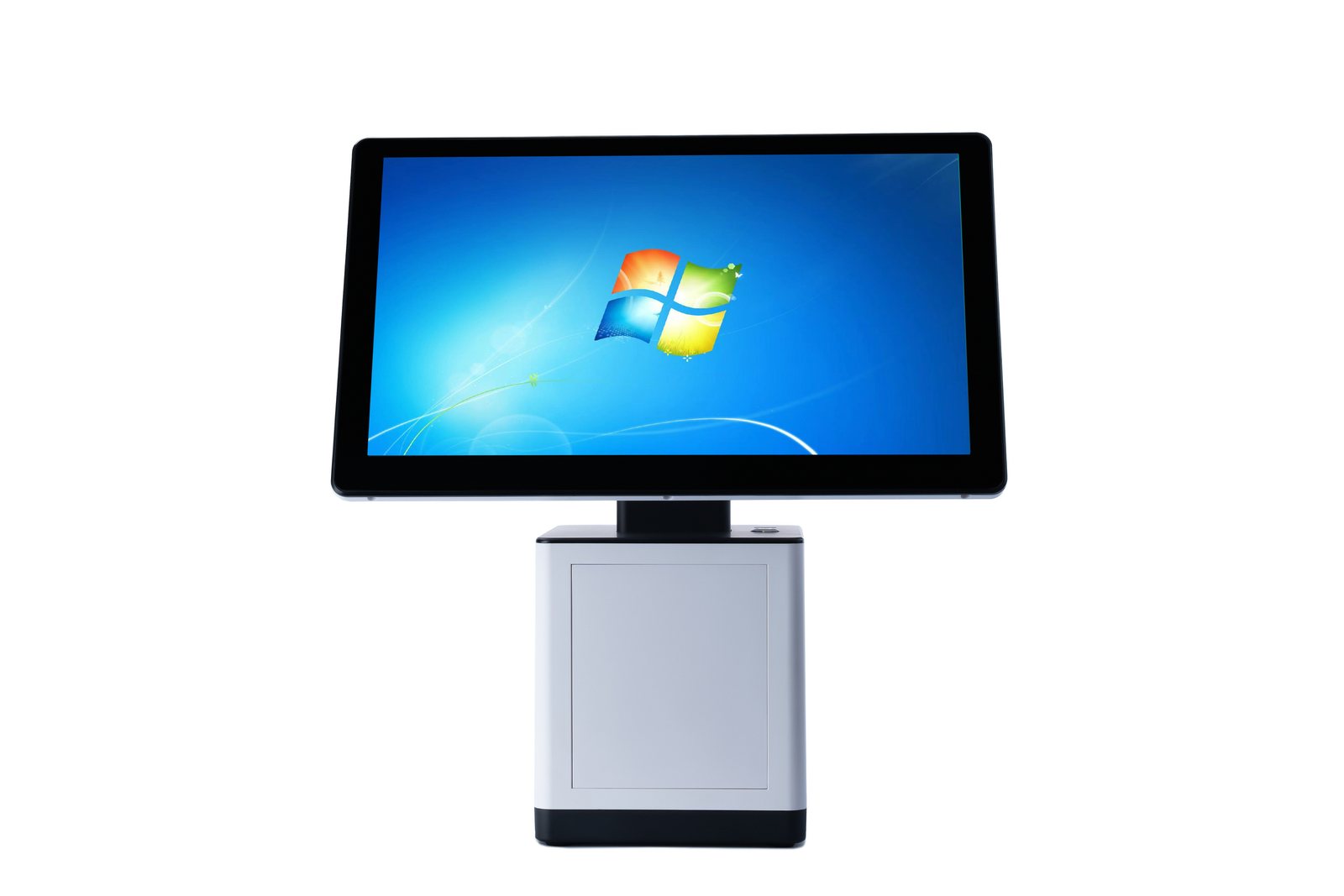

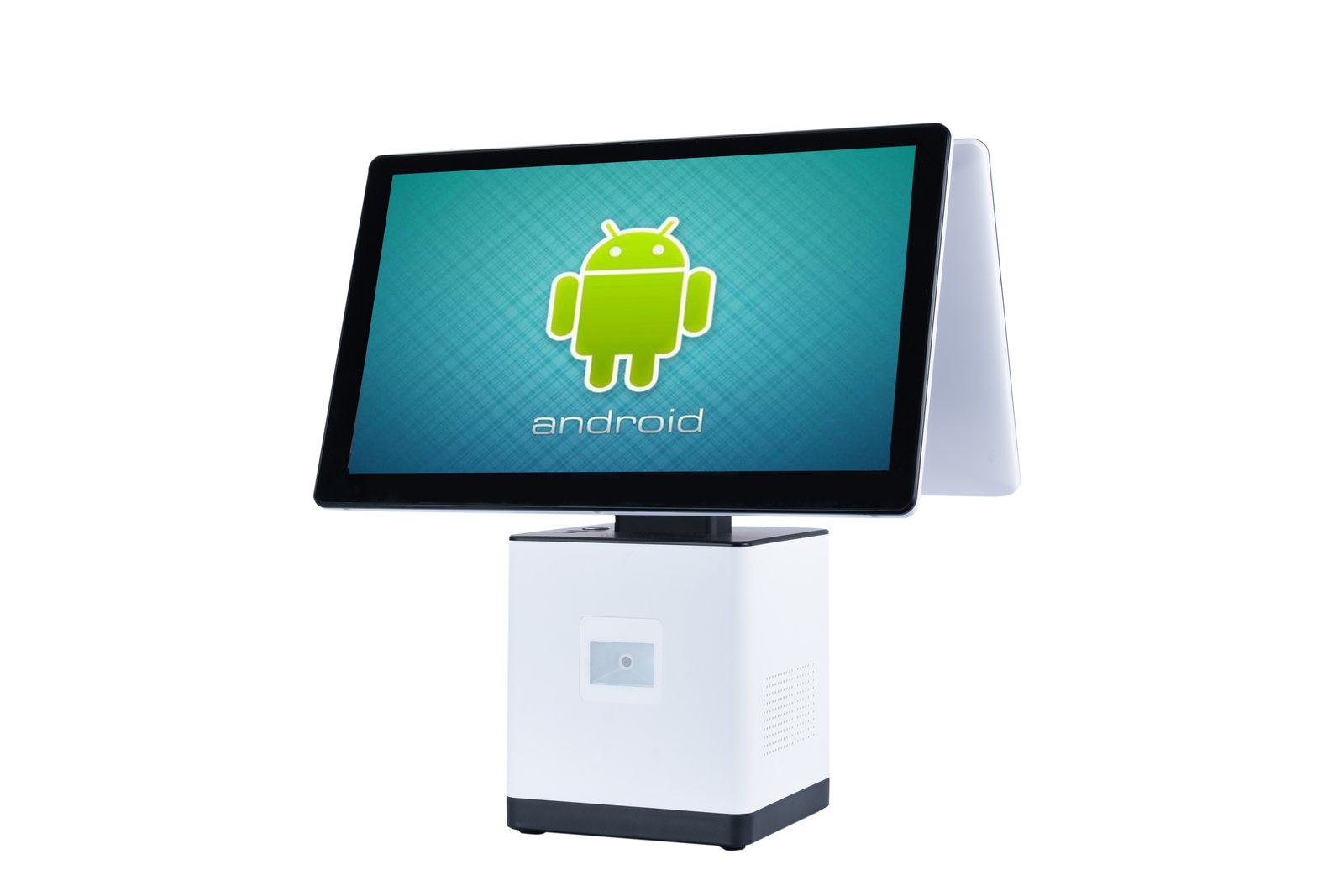

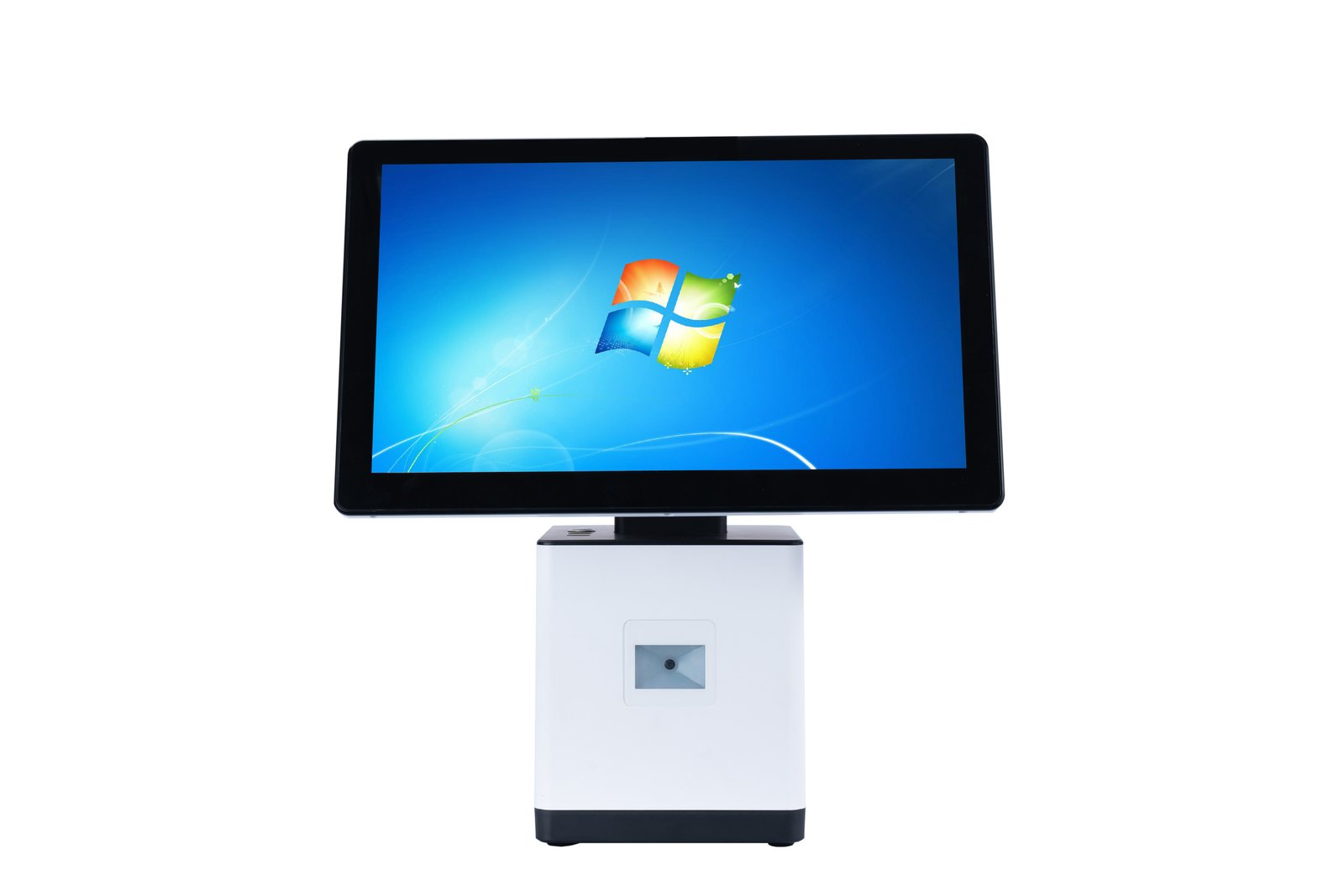

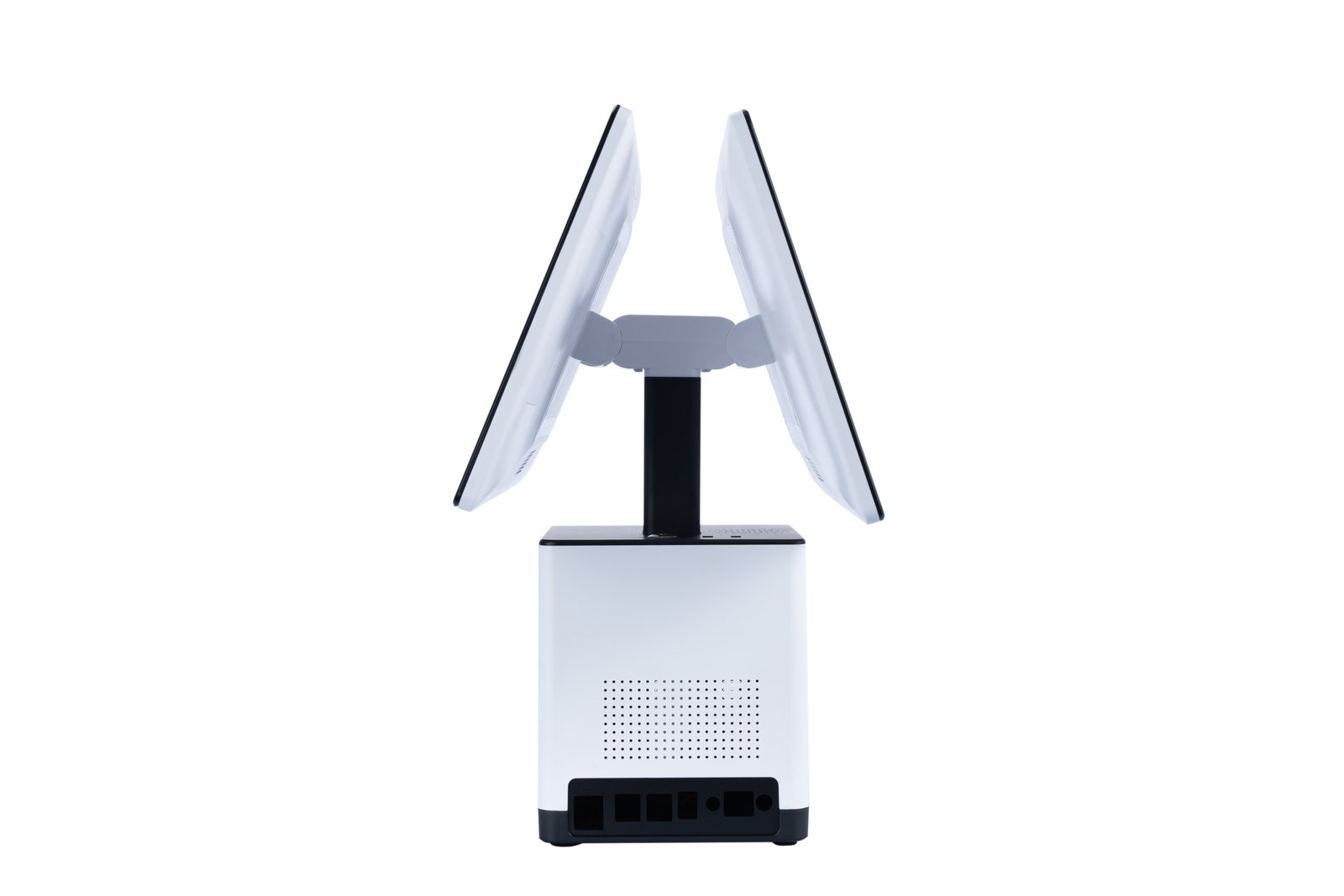

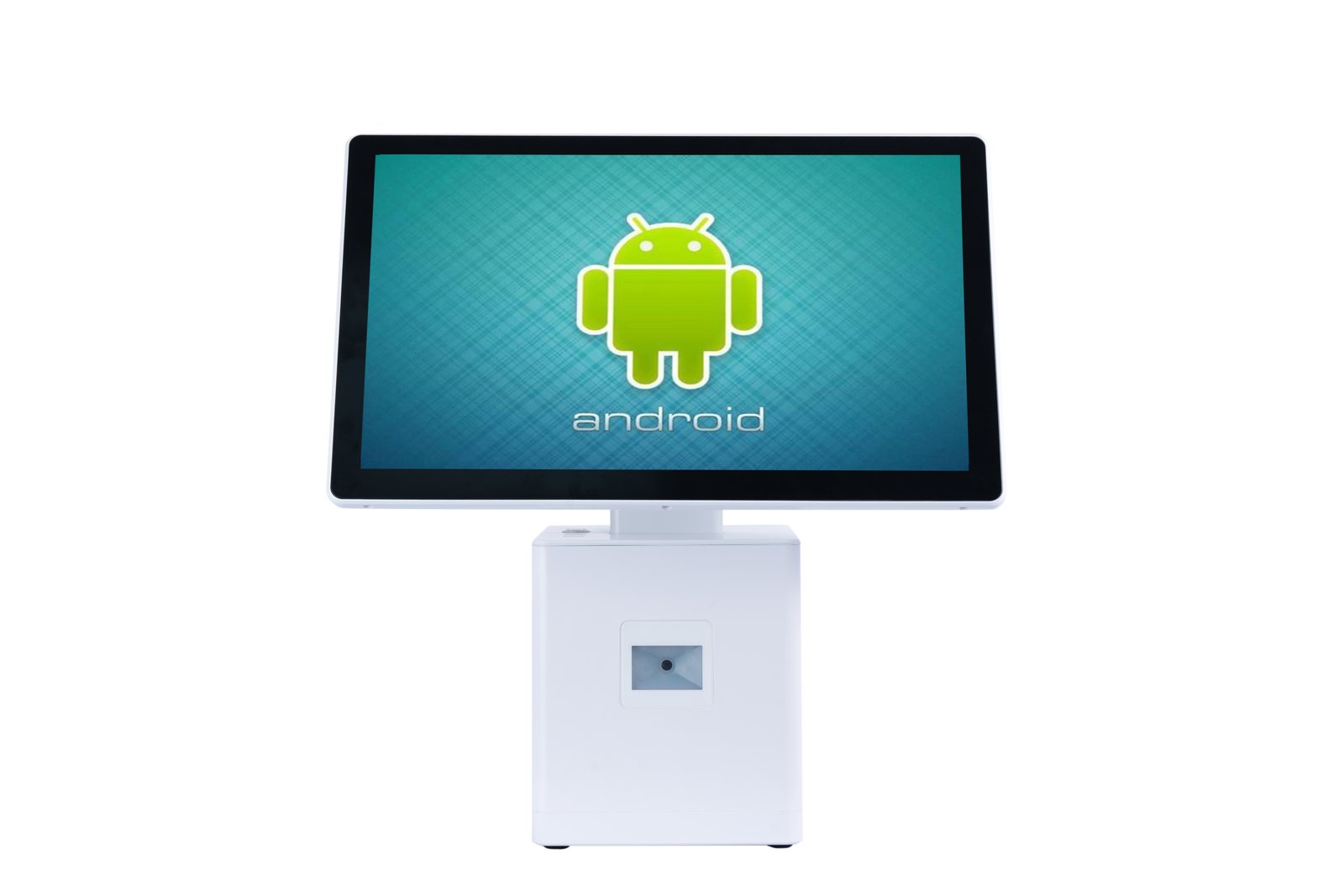

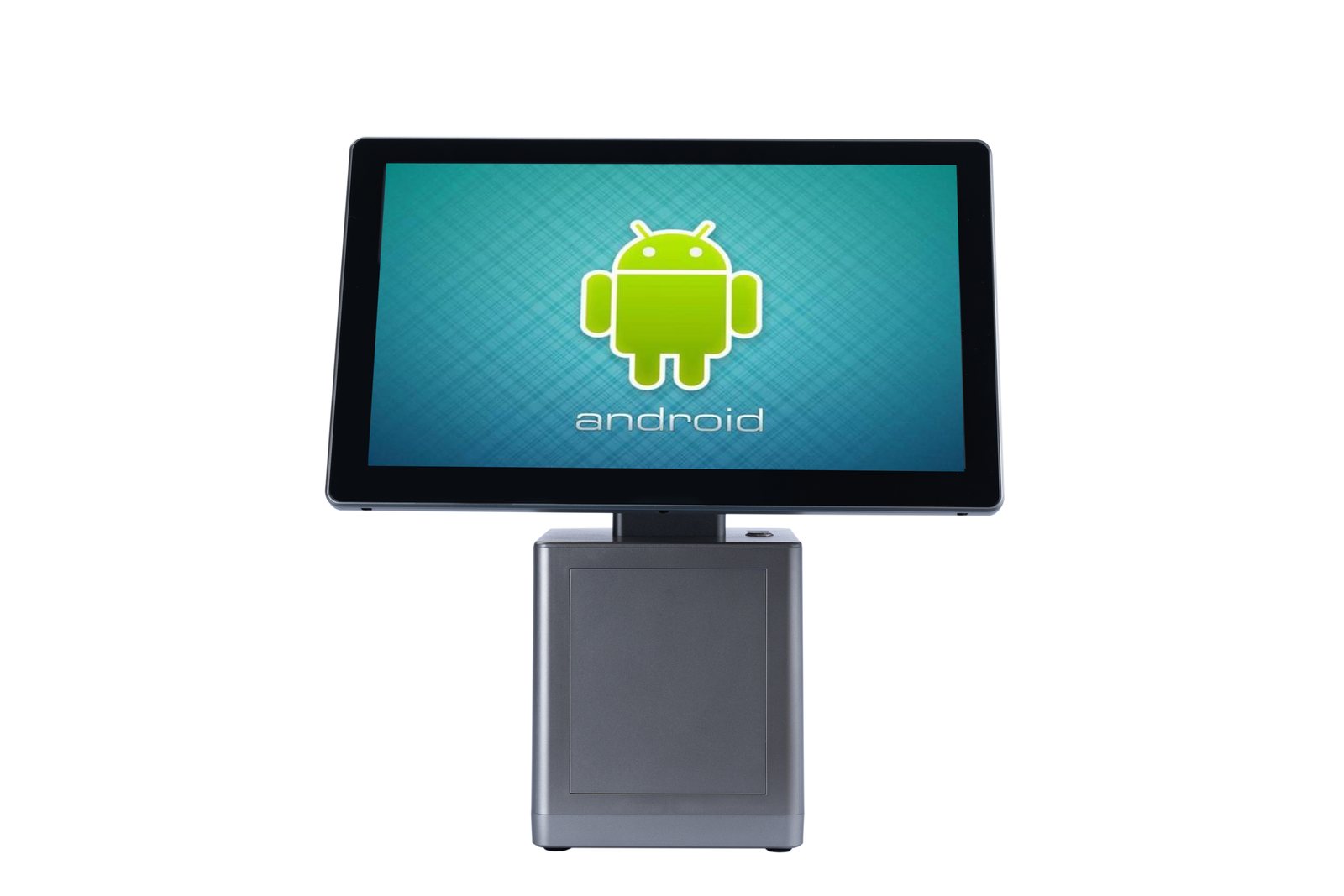

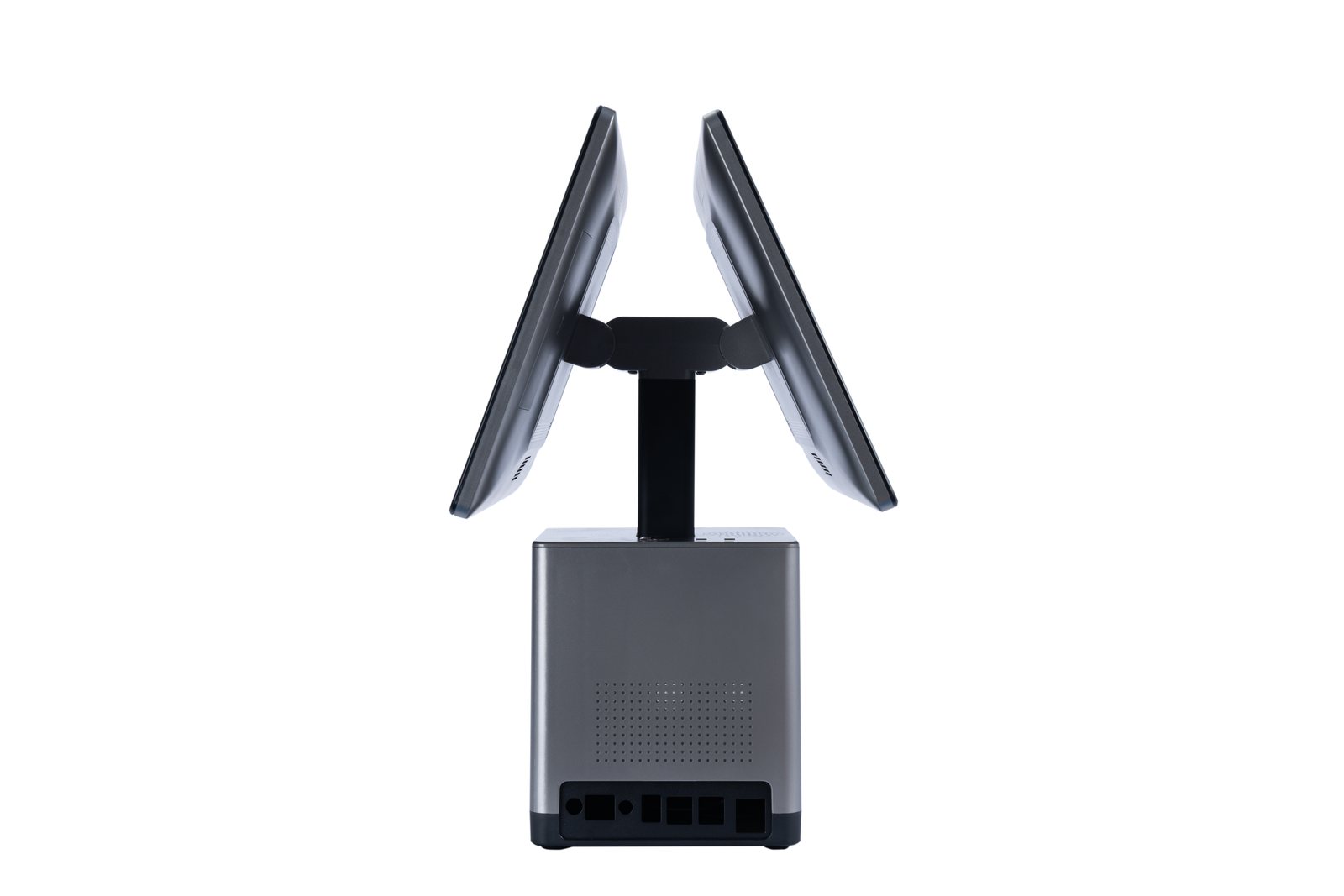

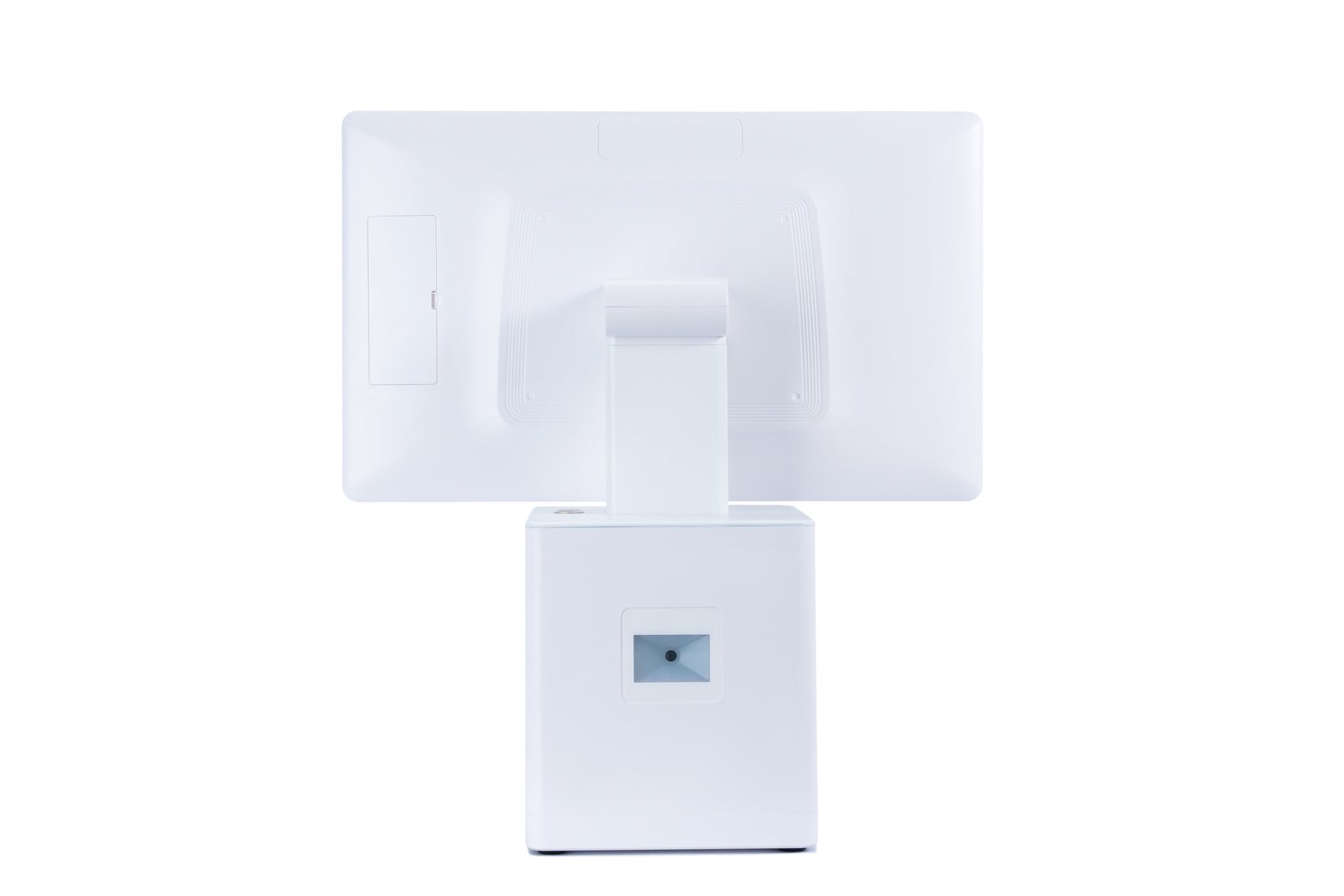

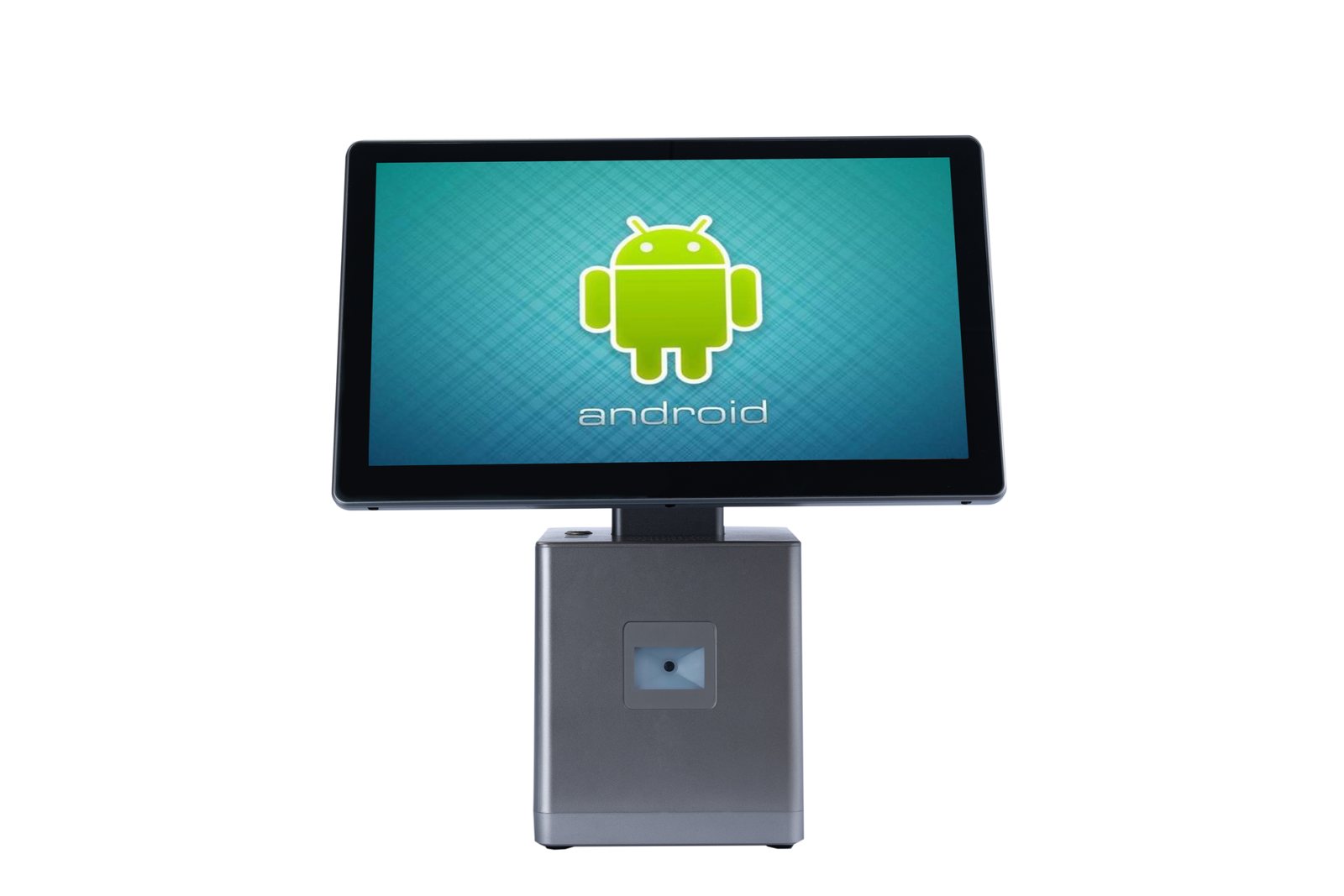

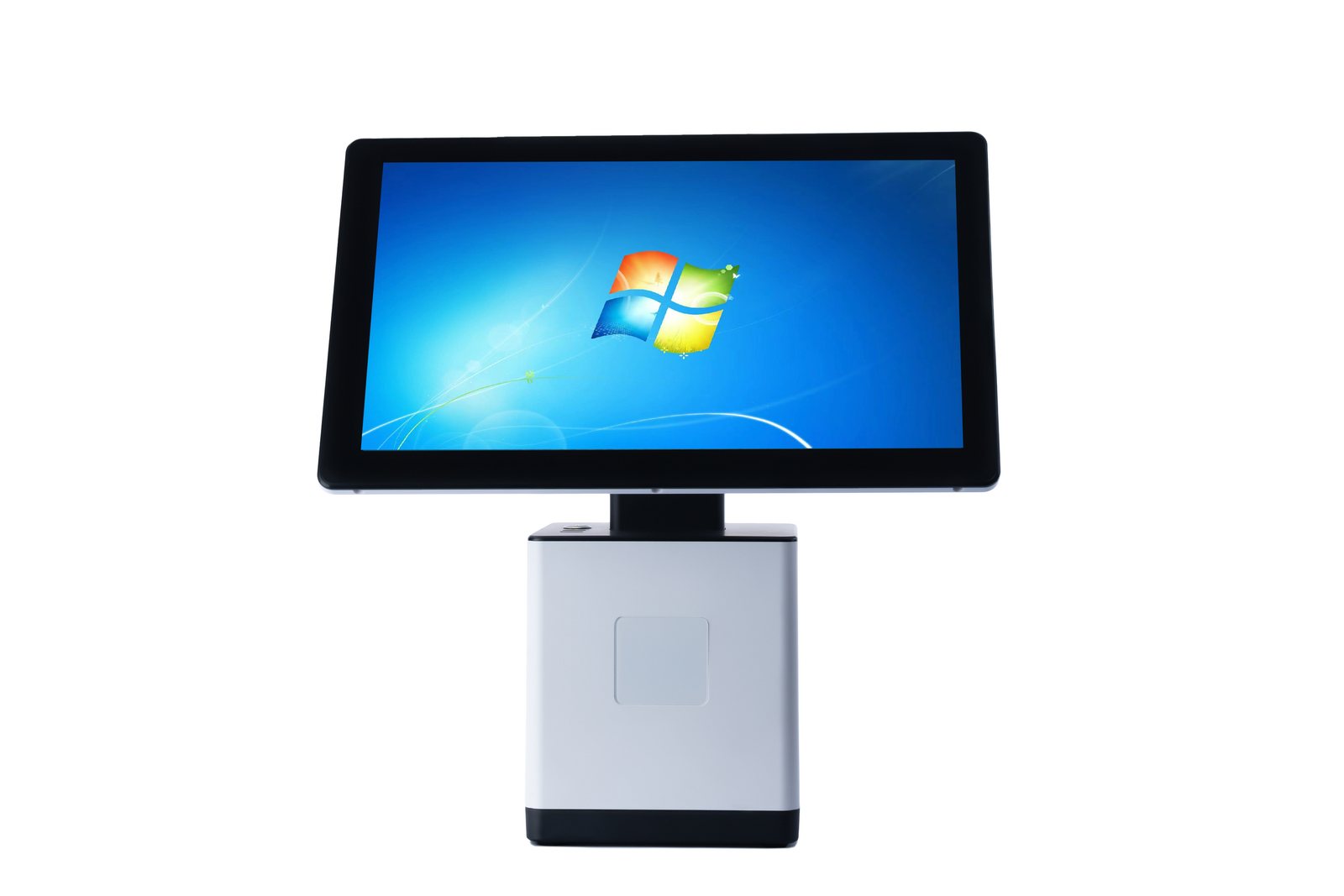

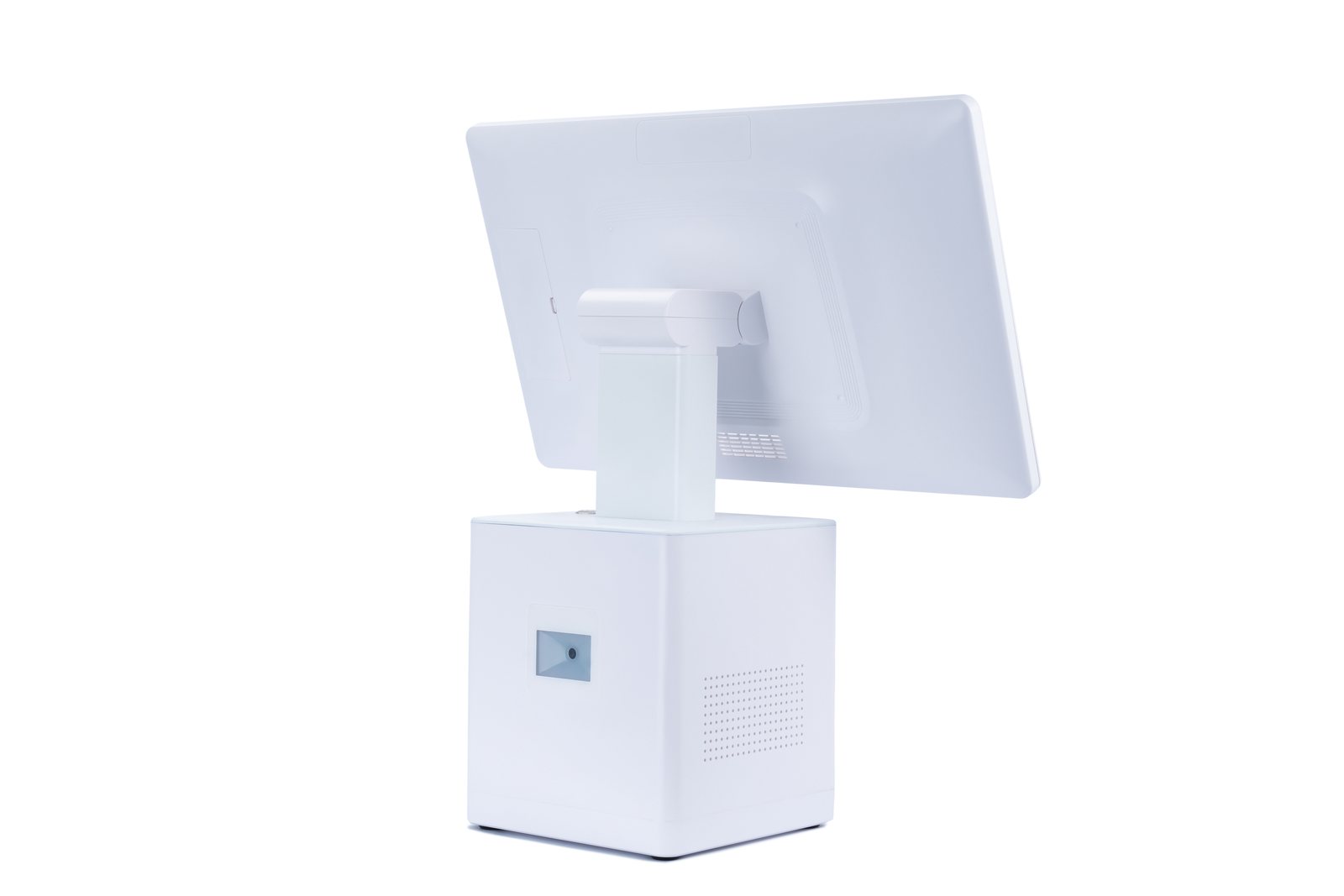

FoldPOS H01 Series combines a 15.6-inch capacitive-touch display, a folding desktop stand and configurable computing hardware in one counter terminal. This page presents the Windows-image configurations: 15.6-inch single display, black 15.6 + 10.1-inch dual display, and silver or gray-black 15.6 + 11.6-inch dual display.
Foldable desktop stand
15.6-inch capacitive touch
Single or 11.6-inch dual display
58 / 80 mm printer optional
TECHNICAL SPECIFICATIONS
Built around your H01 Series configuration.
Core H01 Series platform options are shown below. Final CPU, operating system, interfaces, display setup and peripherals are confirmed with the approved quotation.
CPU platform
Windows: N5095, N97, N100, J6412, i3, i5 or i7 · Android: RK3566, RK3568 or RK3588
Operating system
Windows 7 / 10 / 11 or Android OS
Memory
1 × SO-DIMM slot; DDR3L / DDR4; 4 GB / 8 GB / 16 GB optional
Storage
M.2 / mSATA; 128 GB / 256 GB / 512 GB optional
Primary display
15.6-inch LED capacitive-touch display; 1366 × 768, with 1920 × 1080 optional

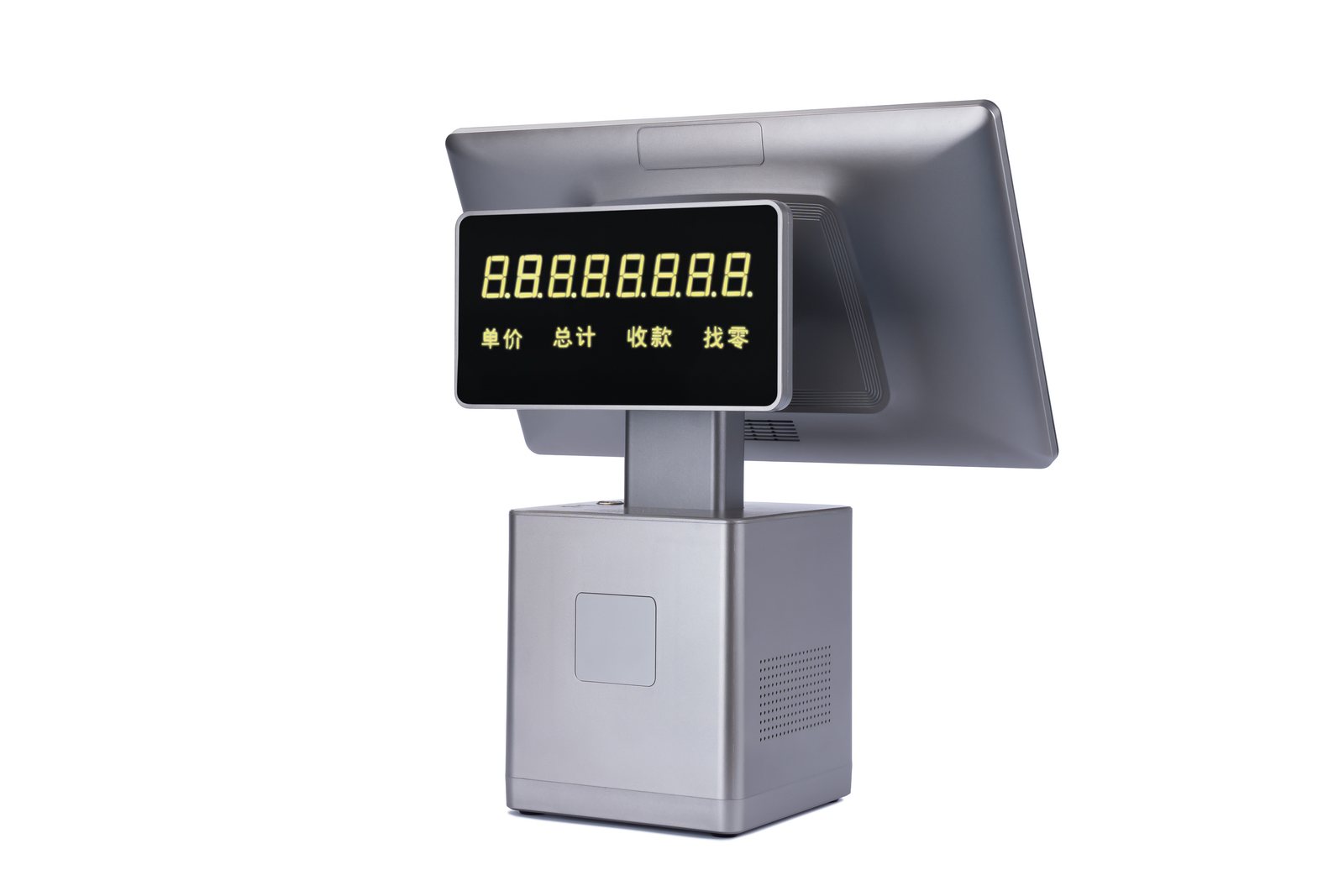

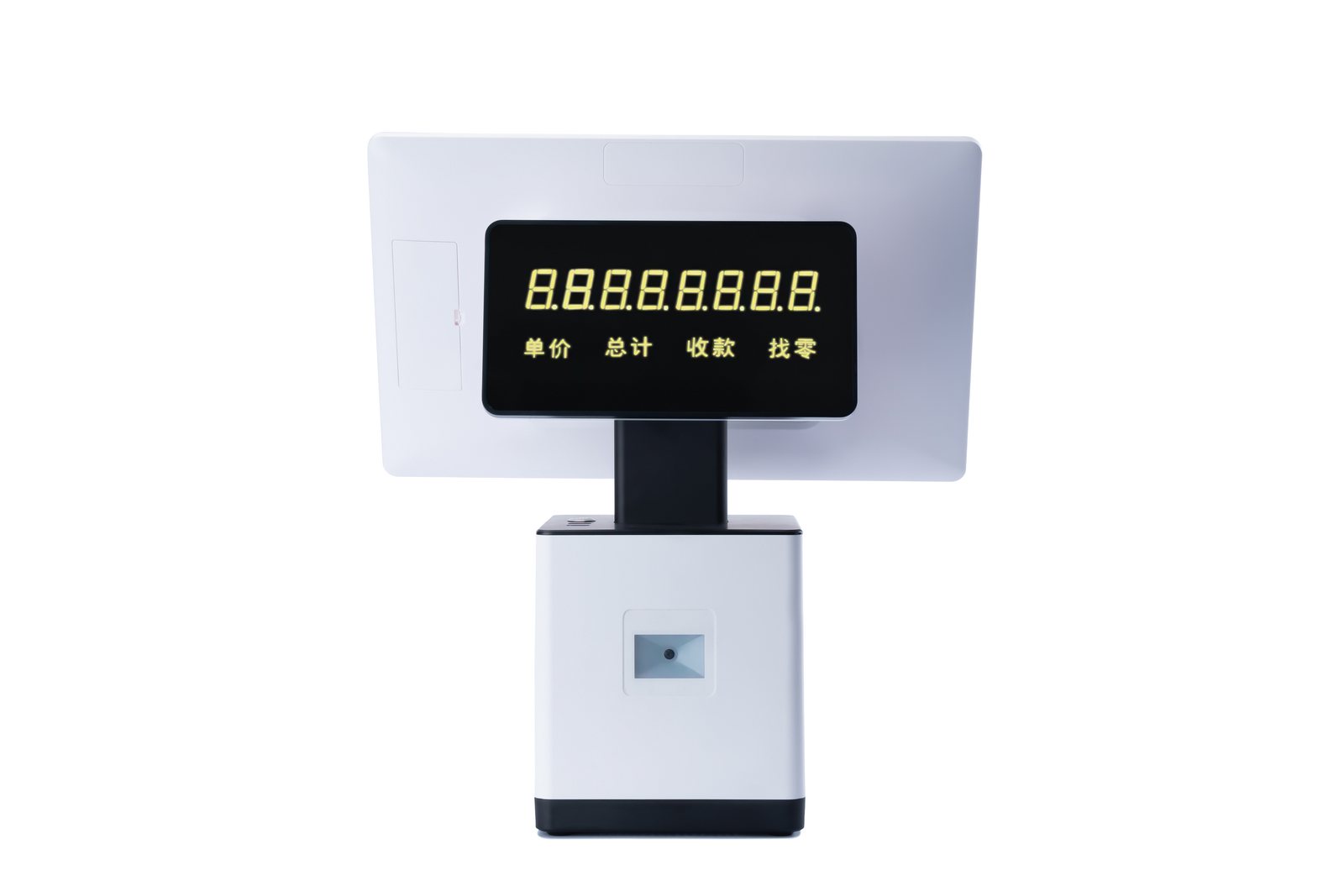

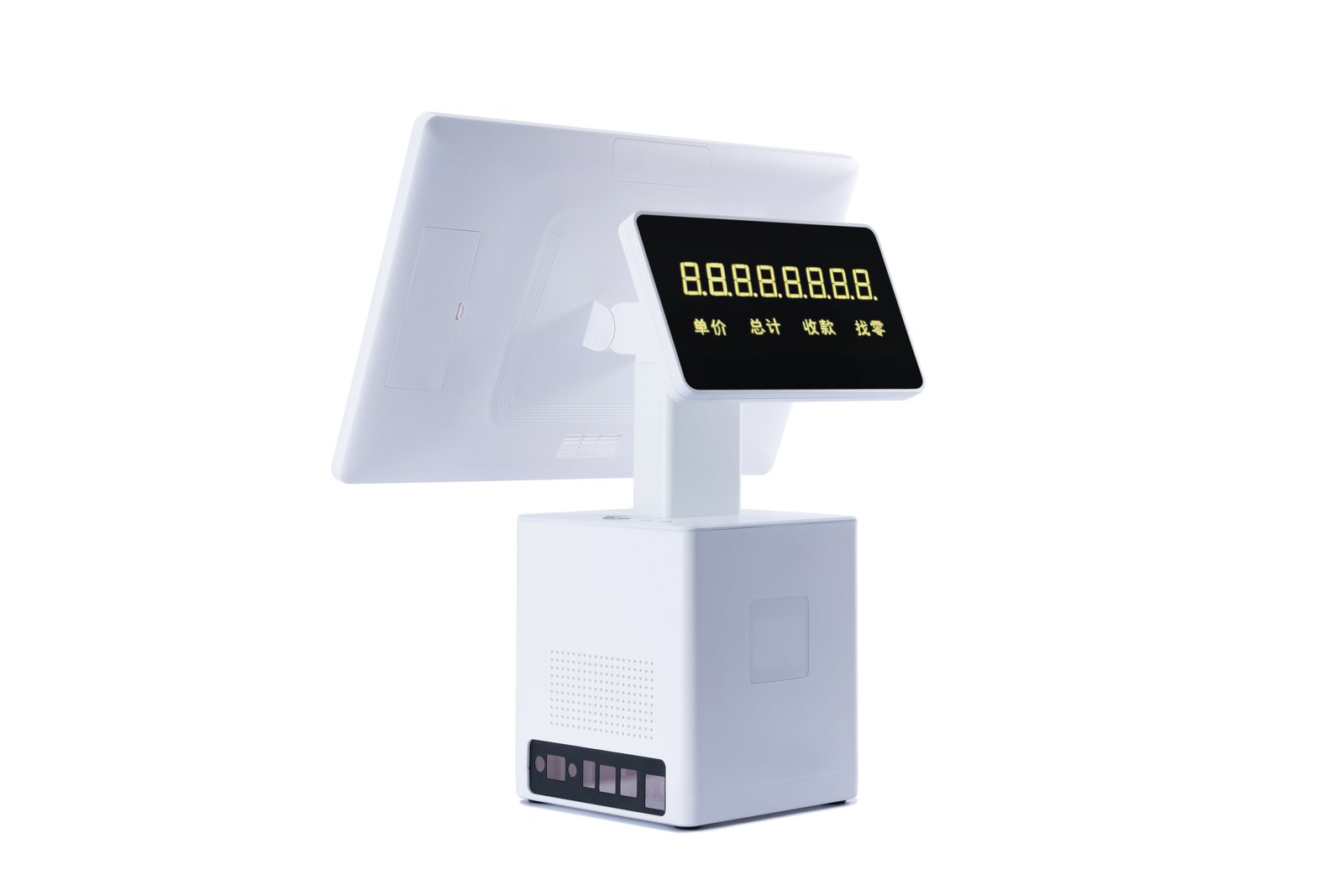

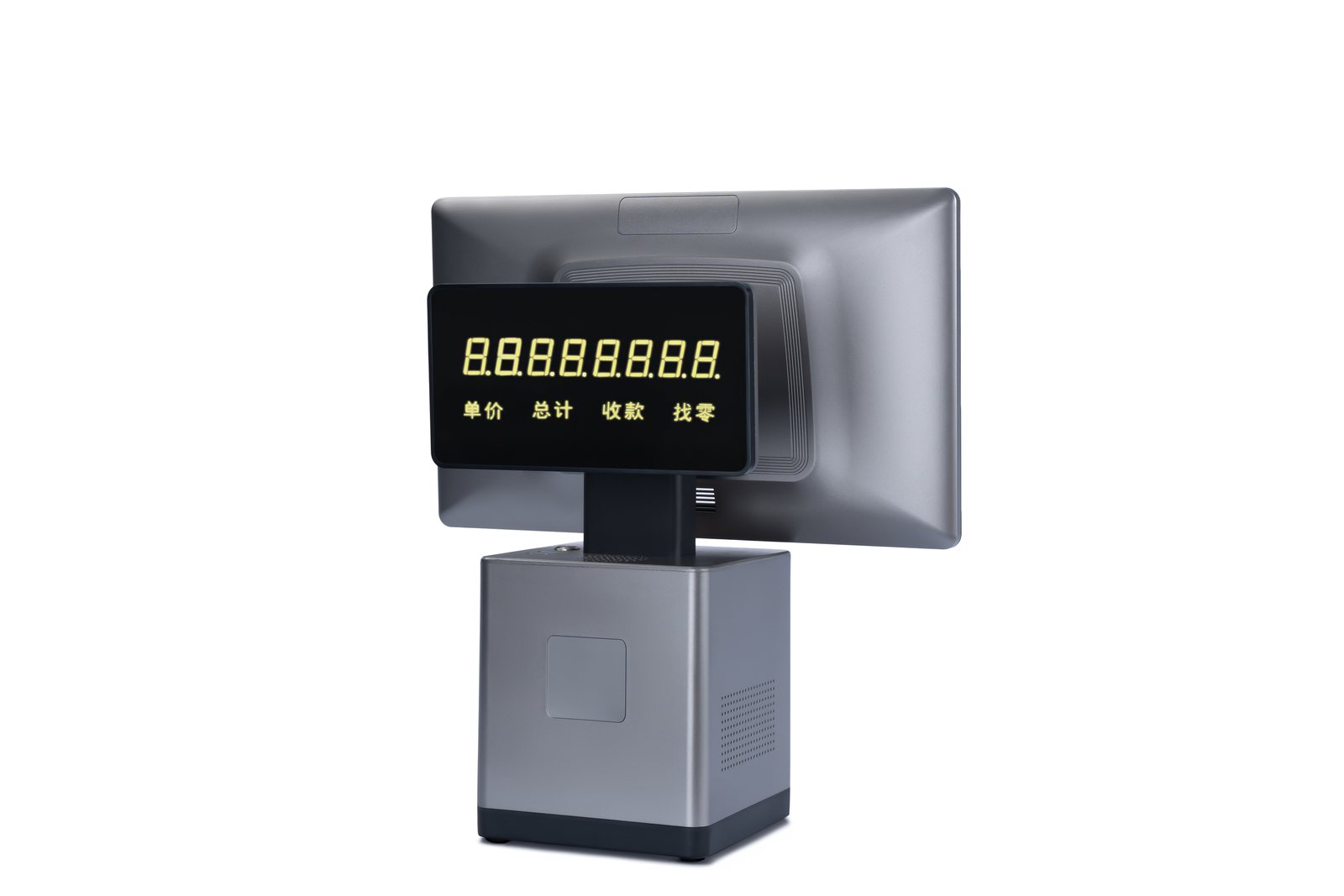

Customer display

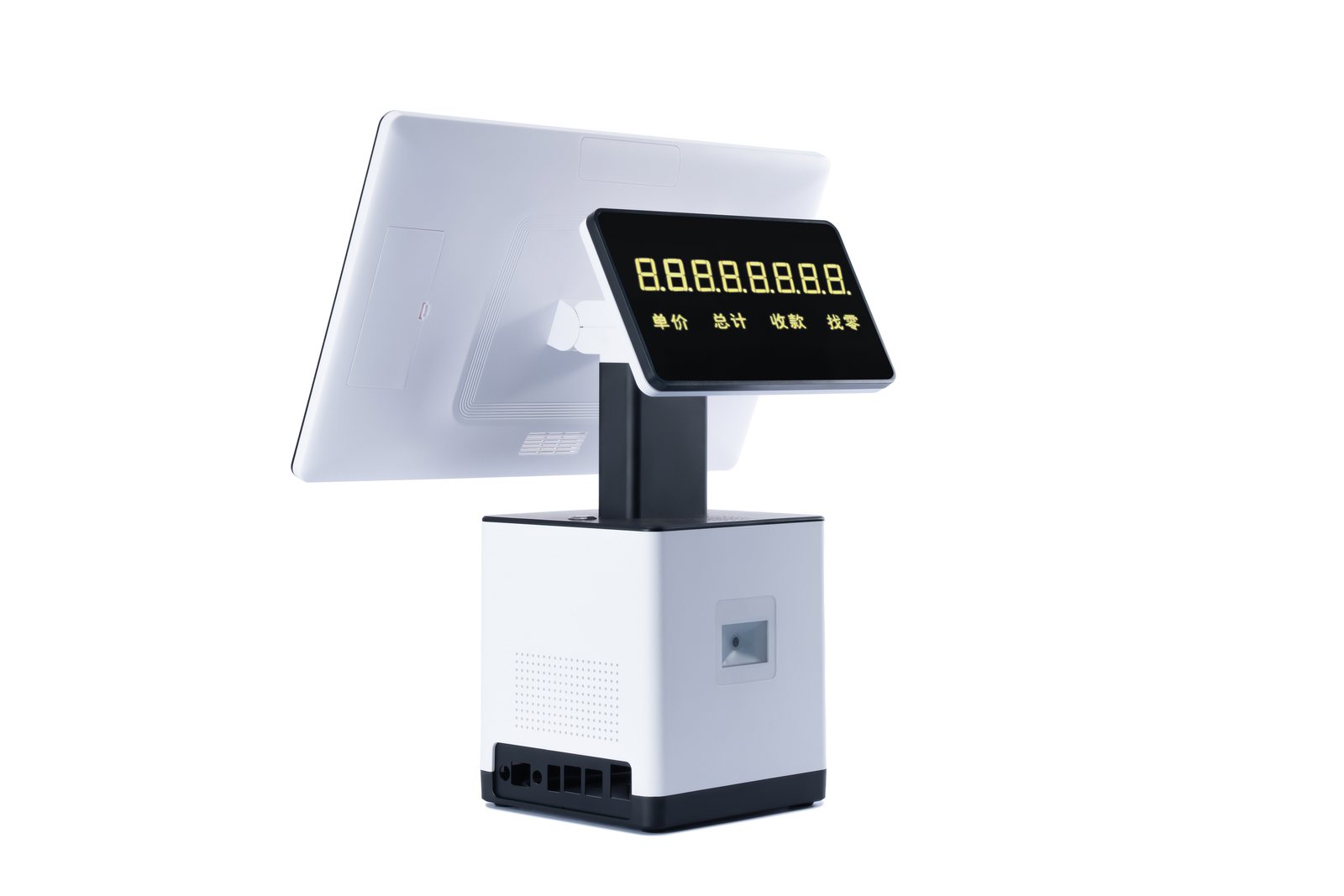

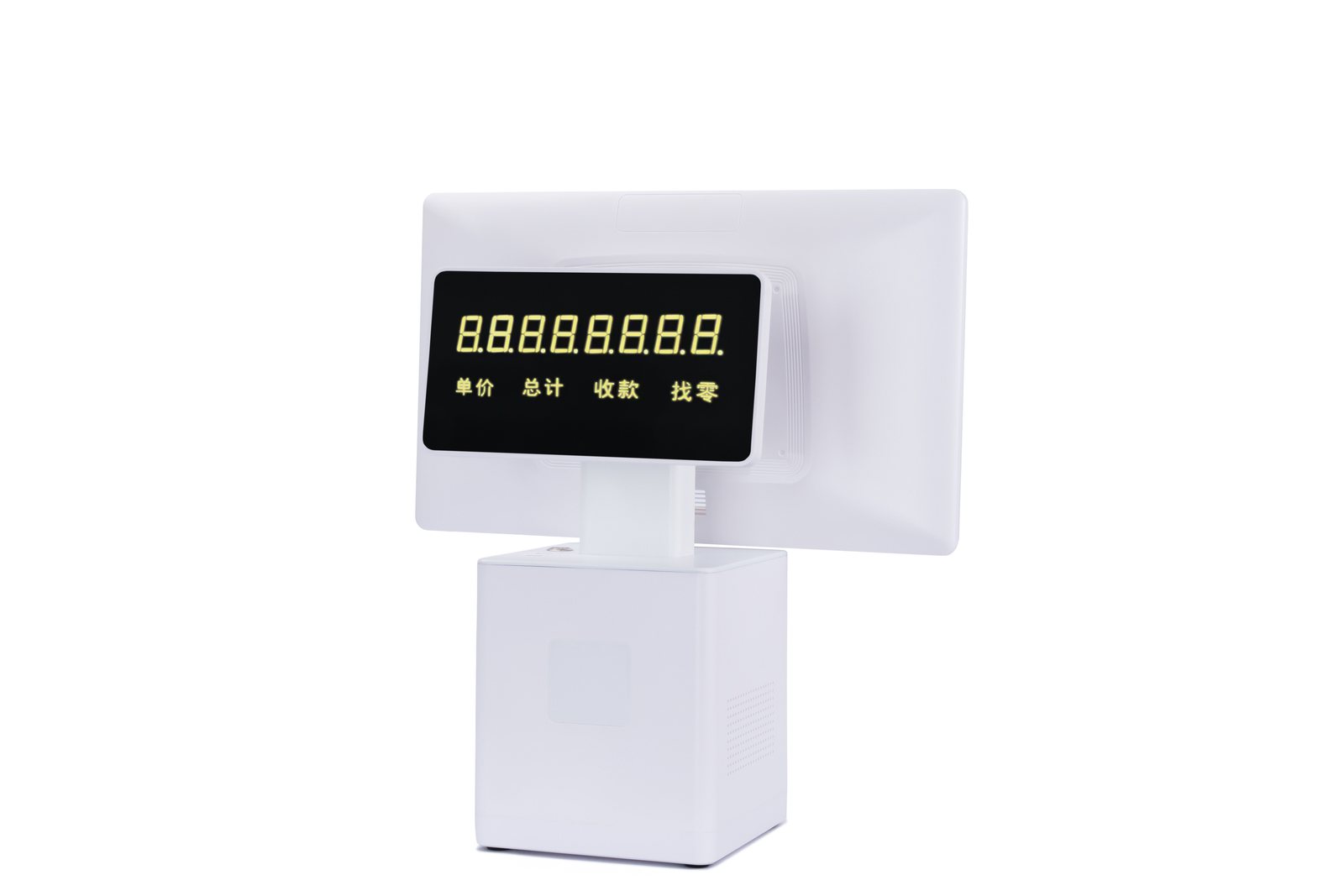

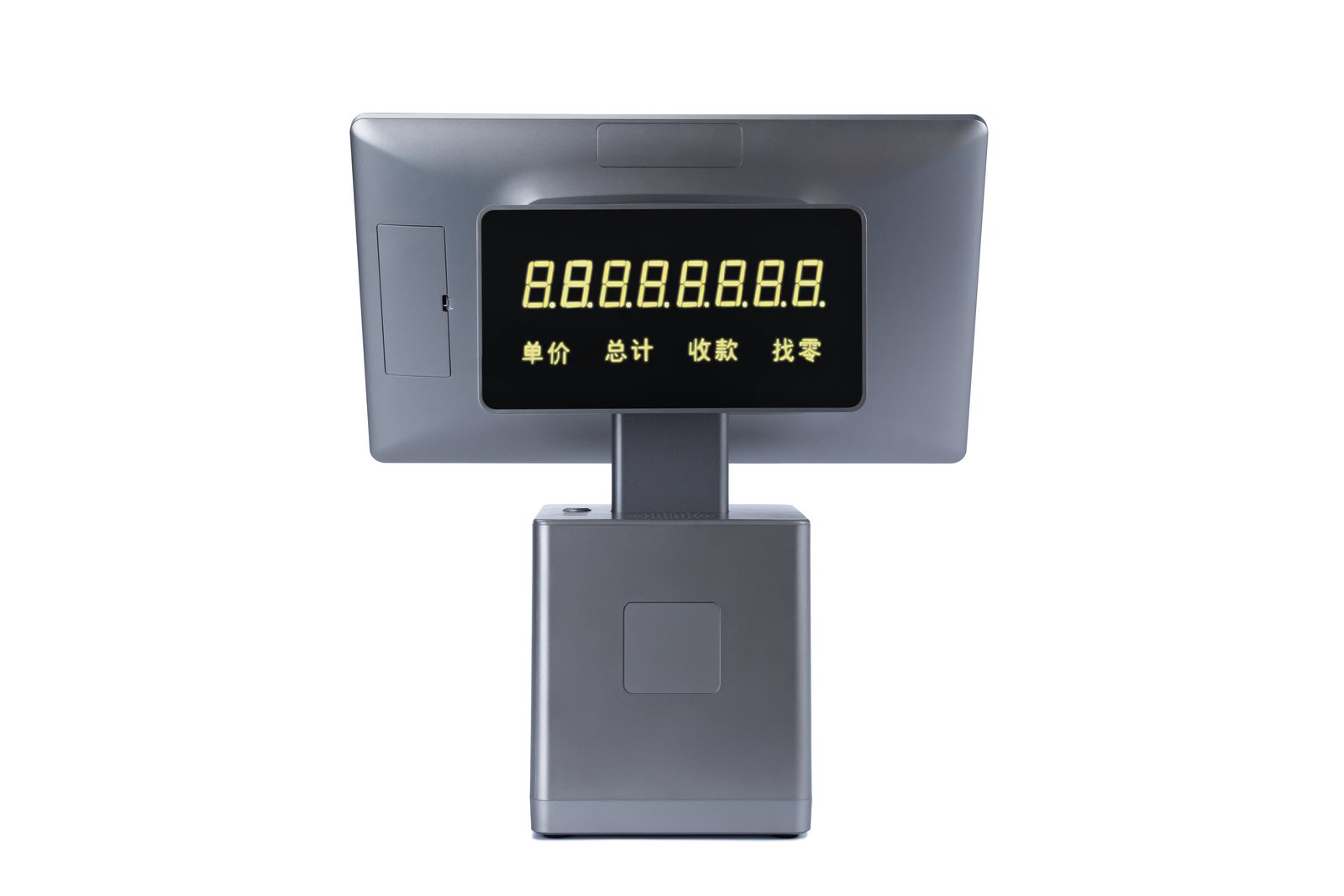

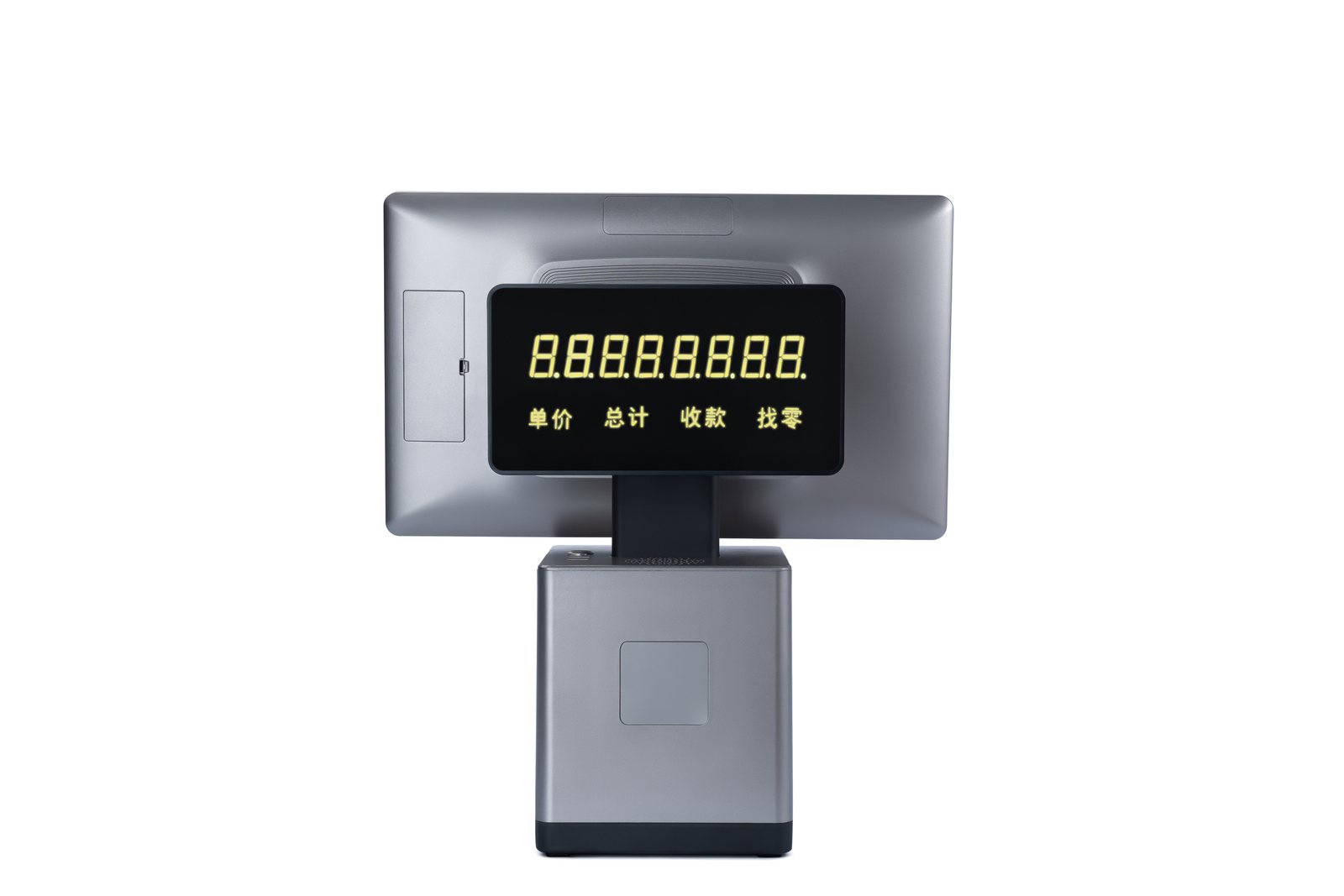

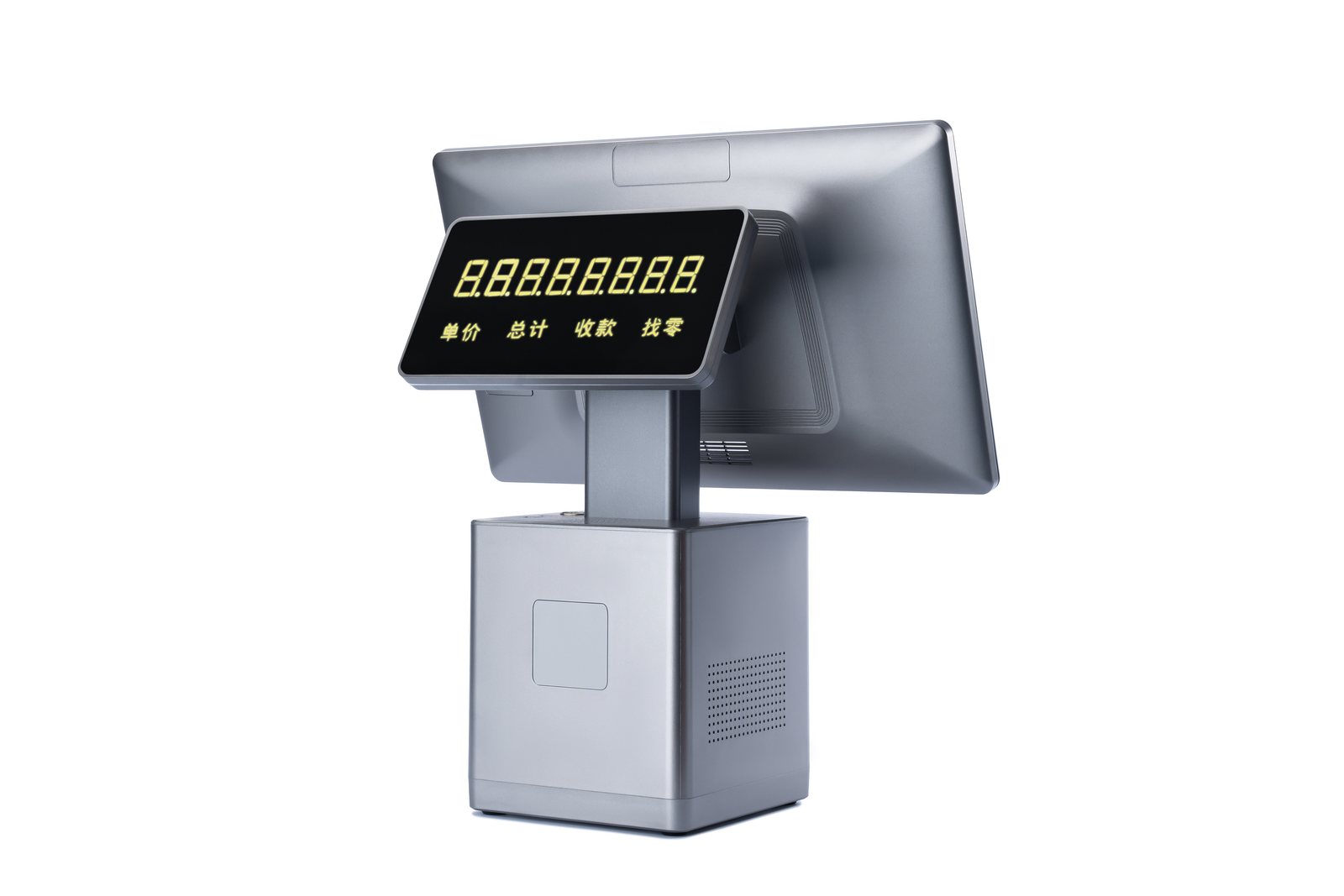

8-digit LED customer display or 11.6-inch customer display optional
Printer & scanner

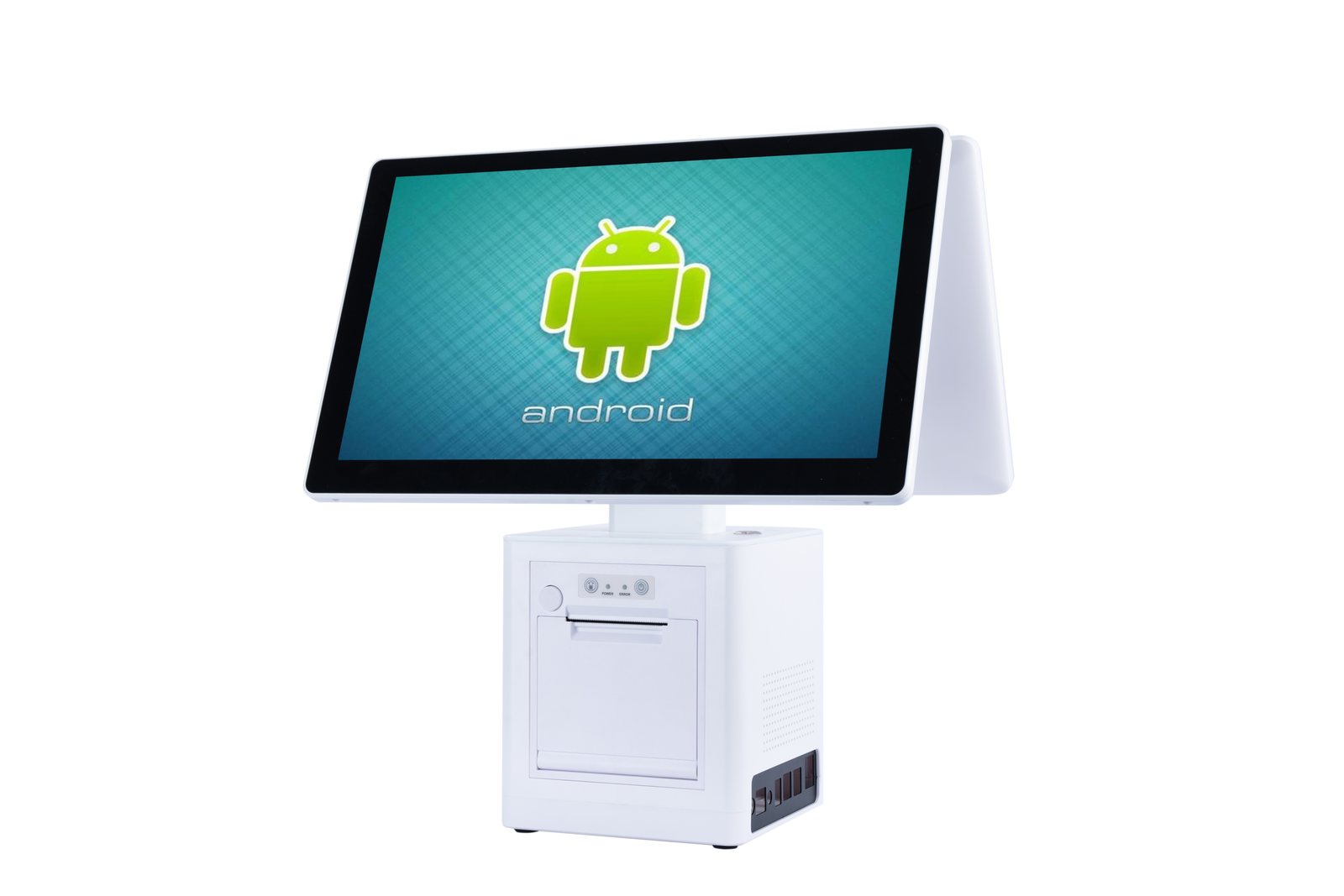

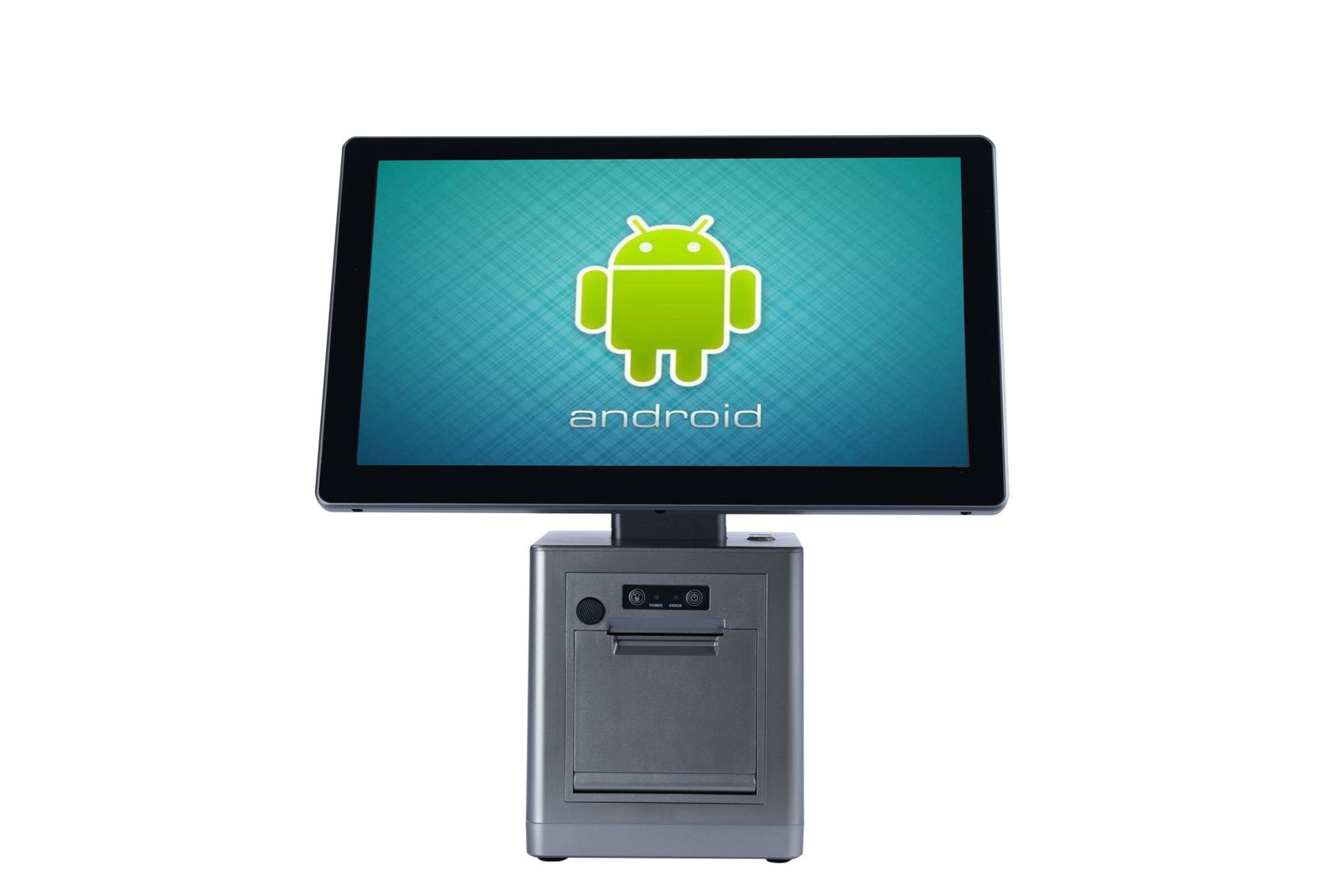

58 / 80 mm printer optional; maximum print speed 180 mm/s; durability 100 km. Optional external 1D / 2D QR scanner.
Connectivity & options
1000 Mbps self-adaptive LAN; MSR, Wi-Fi and speaker optional
Packing & net weight
Carton: L442 × W155 × H455 mm; net weight: 6.5 kg
Images, specifications and configurations are for reference only. Actual products may vary without notice.
CONFIGURATION OPTIONS
Configure H01 Series for your checkout flow.
Choose only the H01 Series options required for the approved project configuration.
PRODUCT DIMENSIONS
H01 product dimensions.

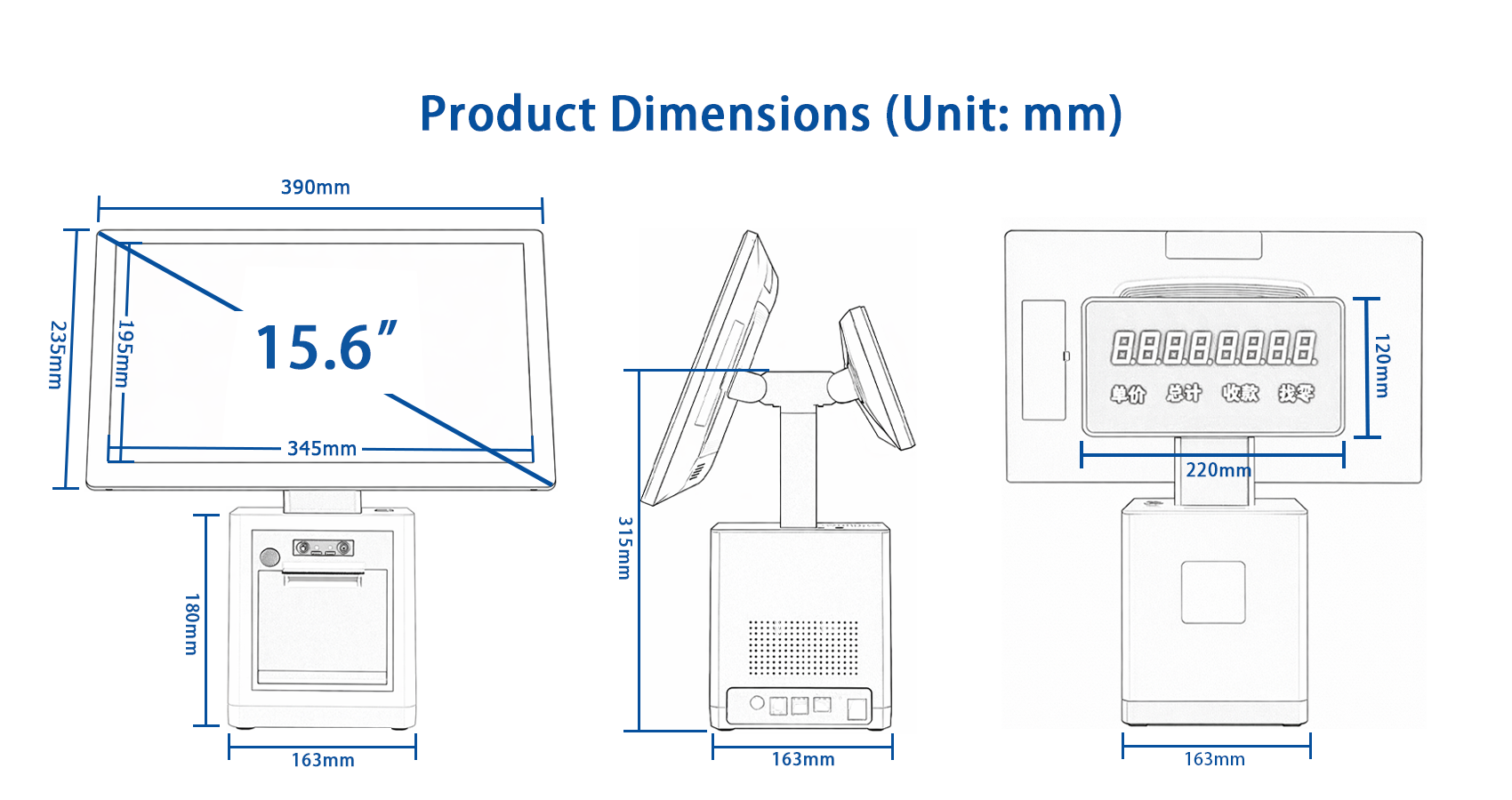

Reference dimensions for the H01 single-screen LED customer-display and dual-screen configurations.
15.6-inch H01 reference dimensions
15.6-inch H01 reference dimensions
Send us your required H01 Series configuration.
Include the target quantity, operating system, display setup and peripherals. Our team will review the appropriate FoldPOS H01 Series platform and options.
